Installation Choices

With a variety of design options to choose from, Elipso by Ozroll can offer a solution for every application

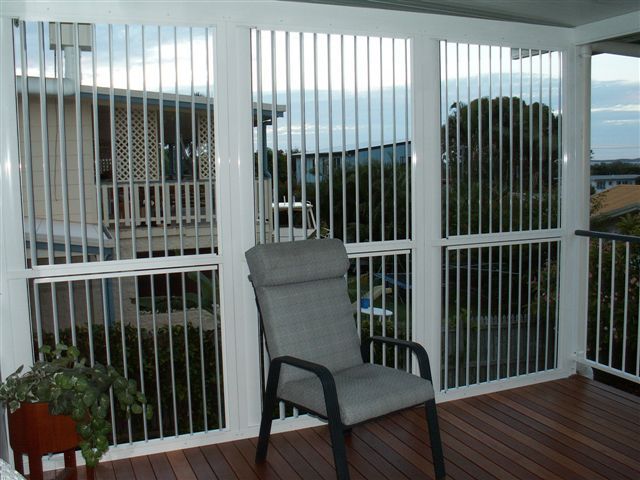

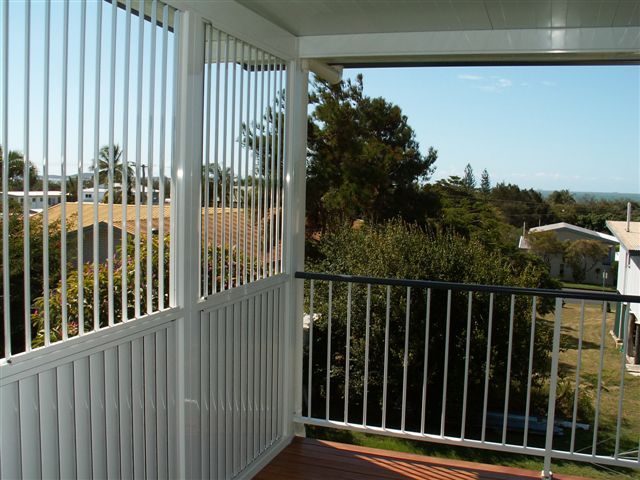

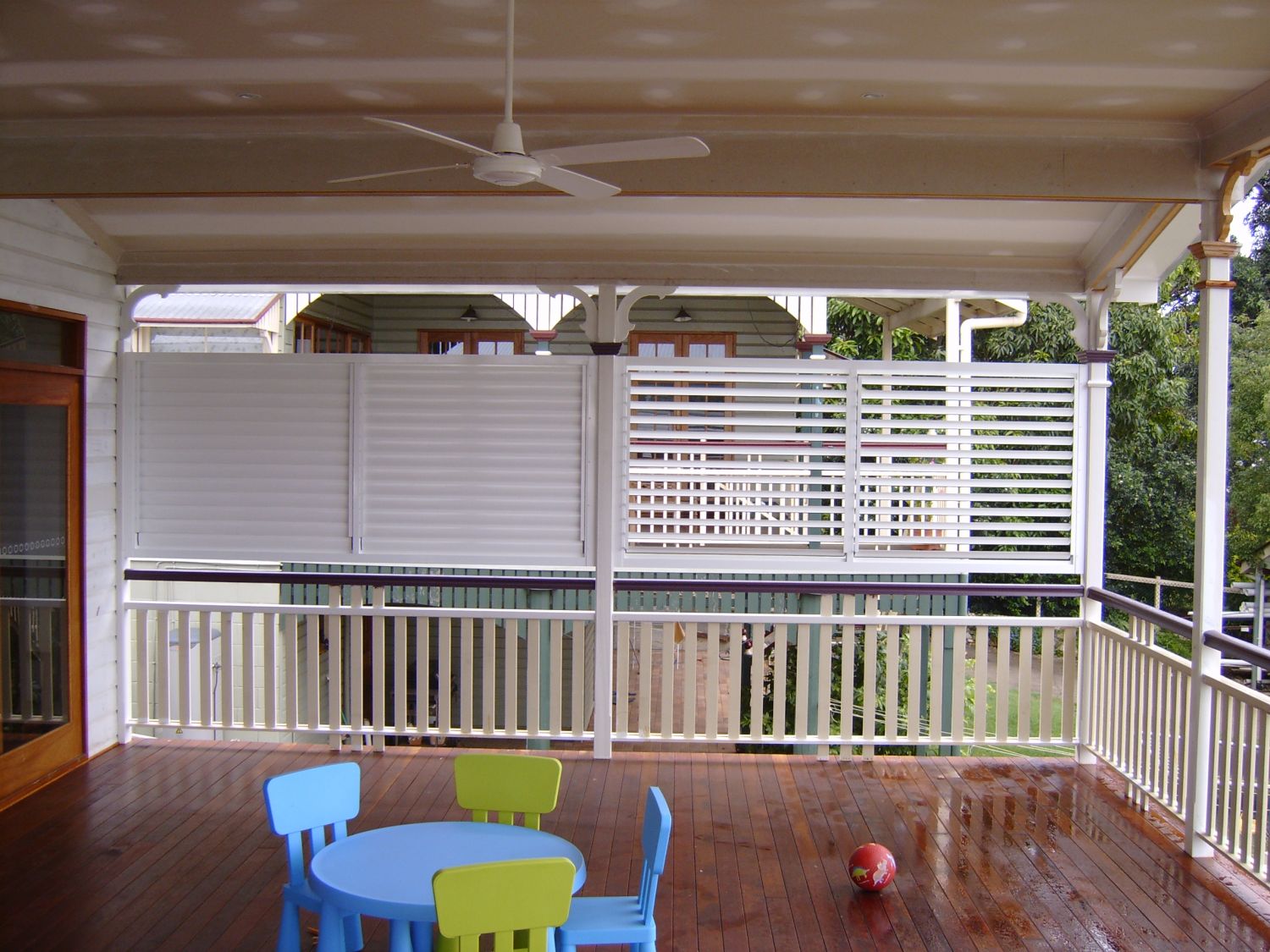

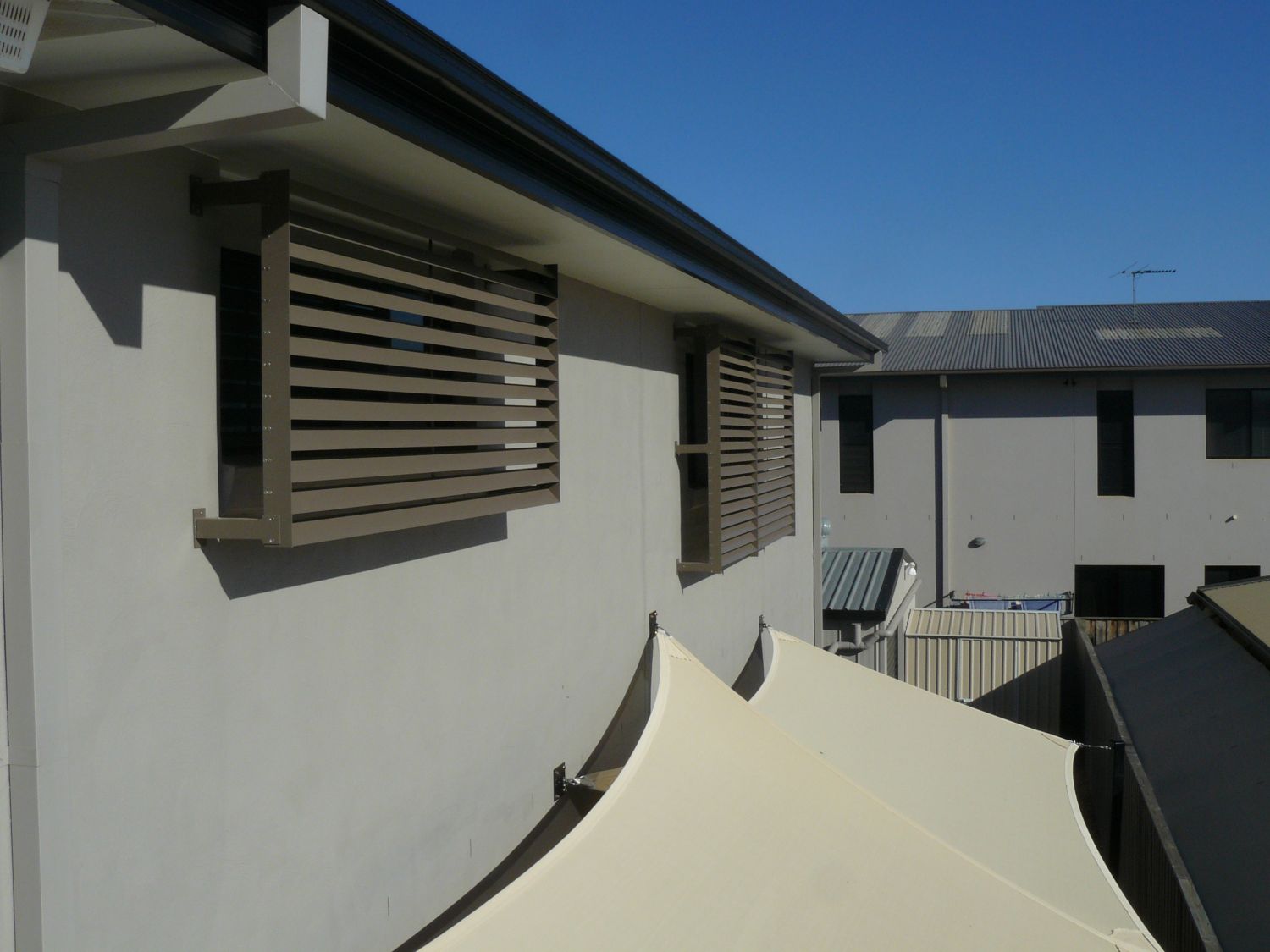

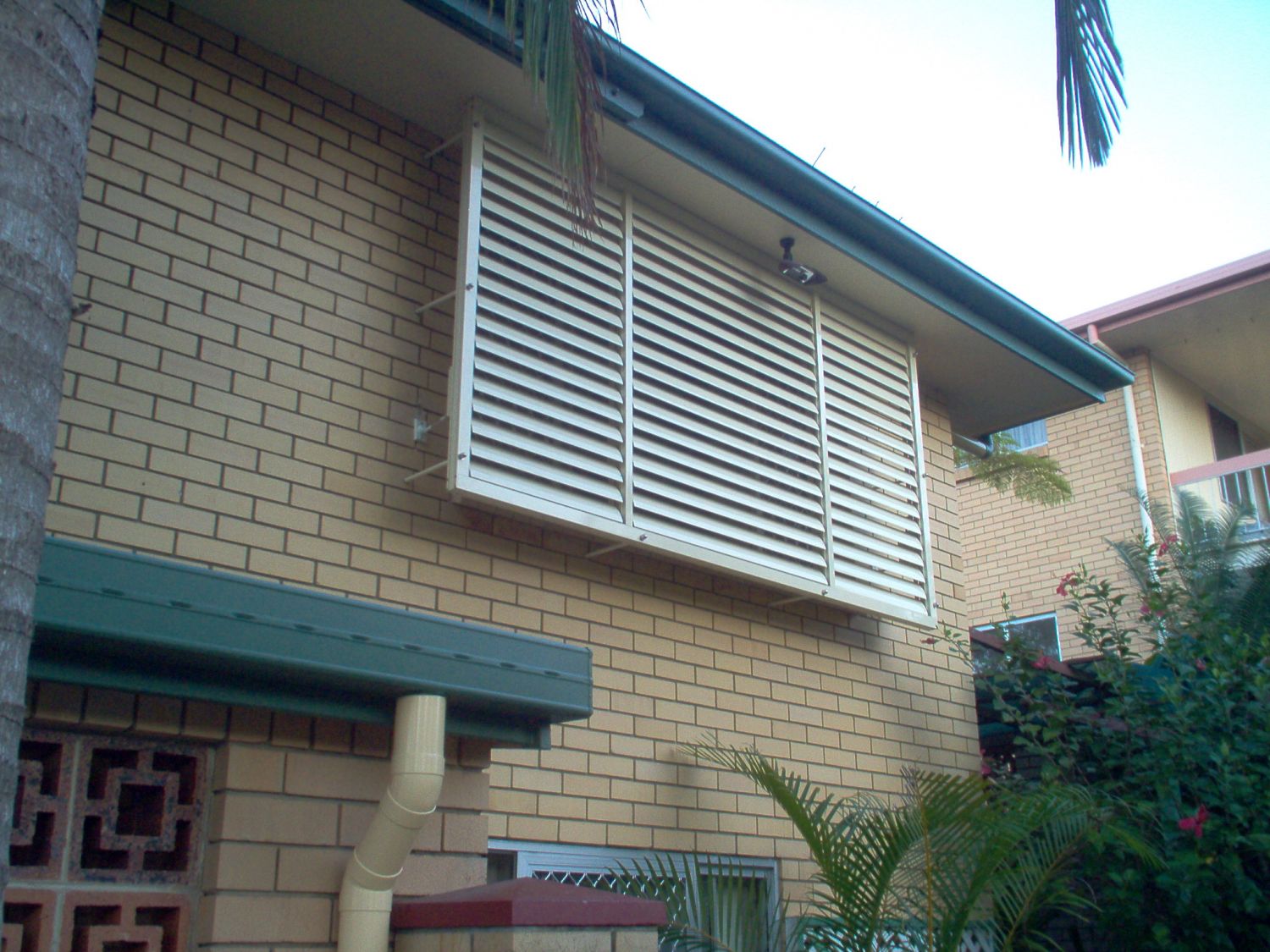

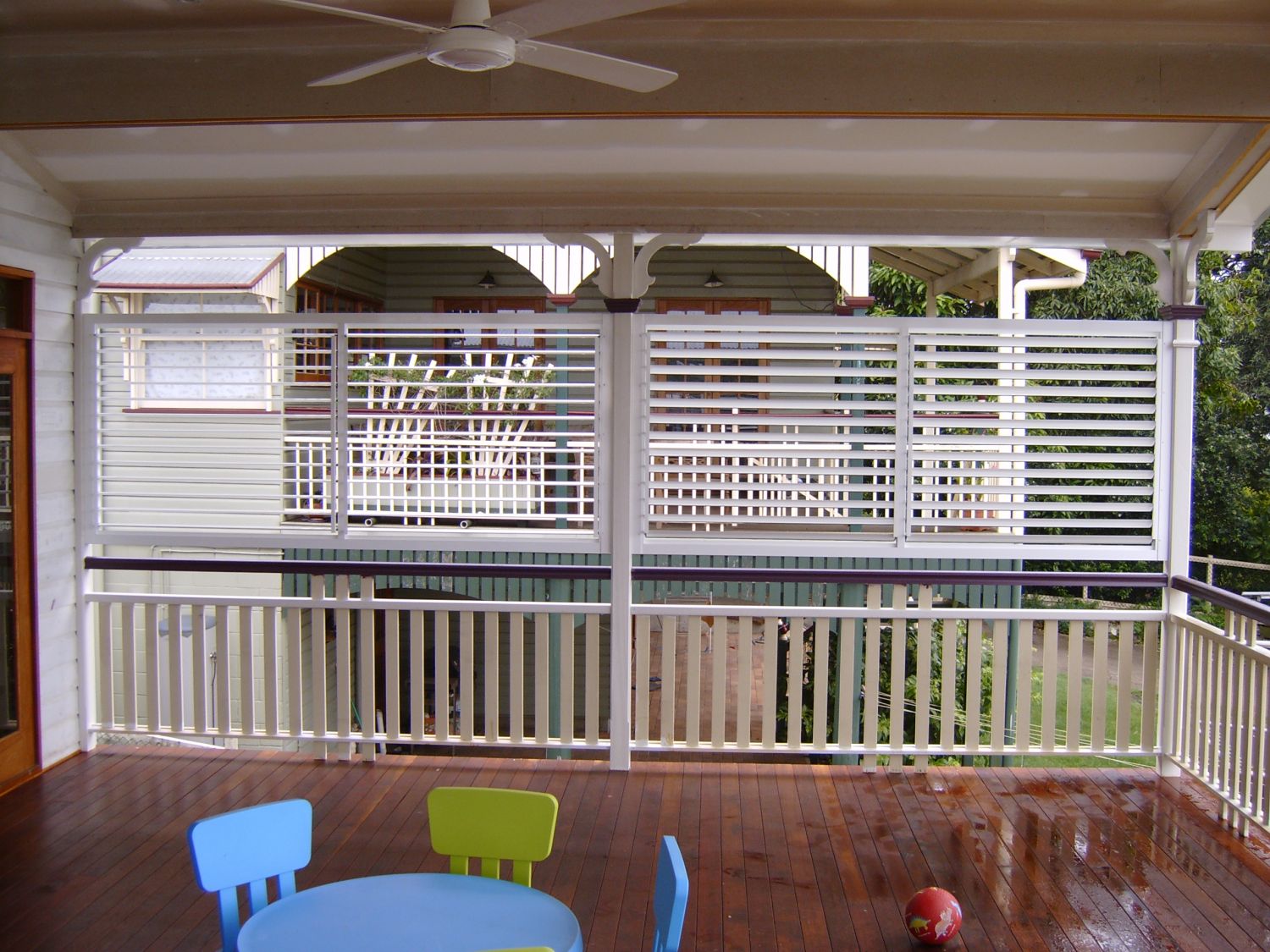

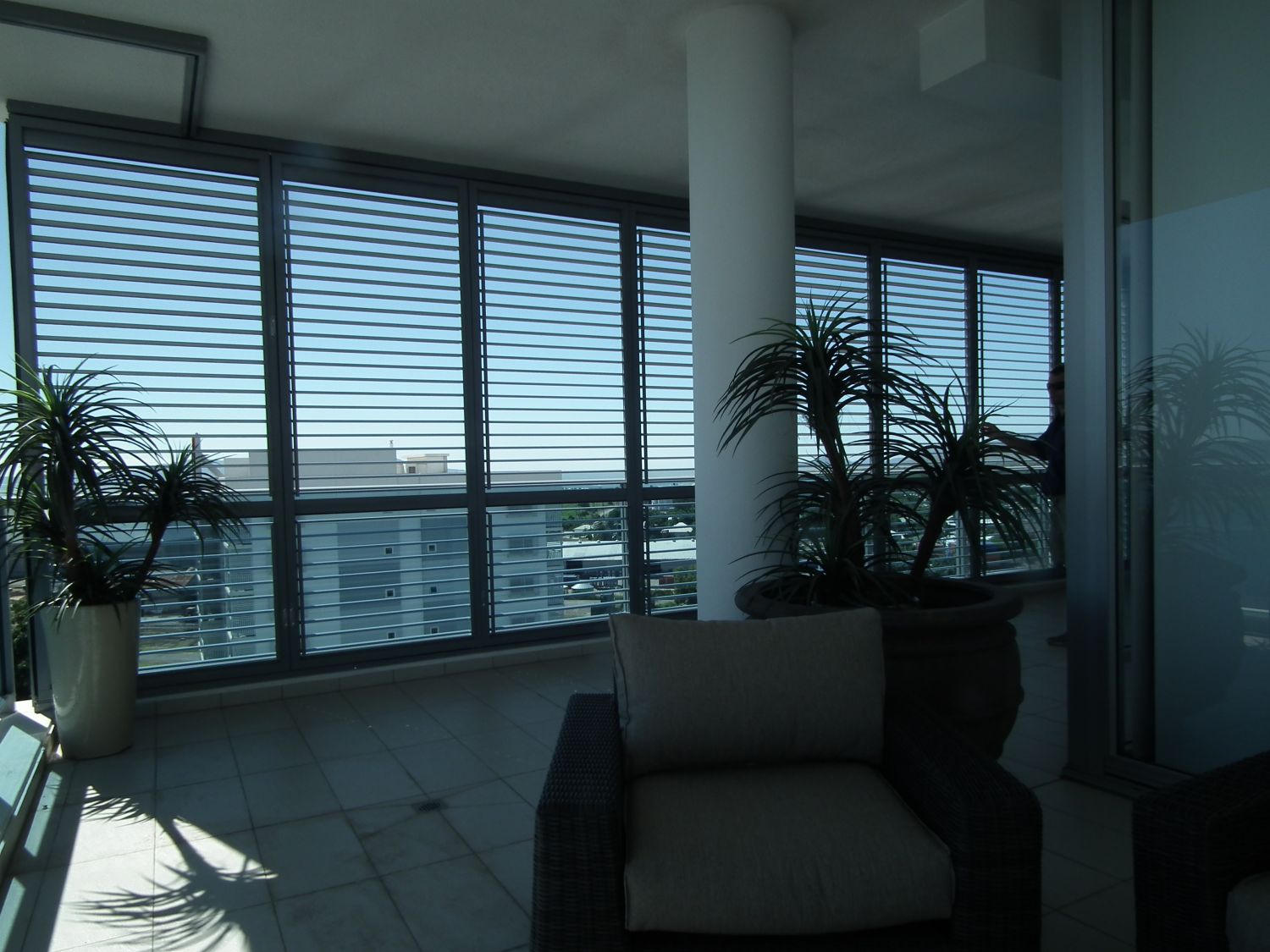

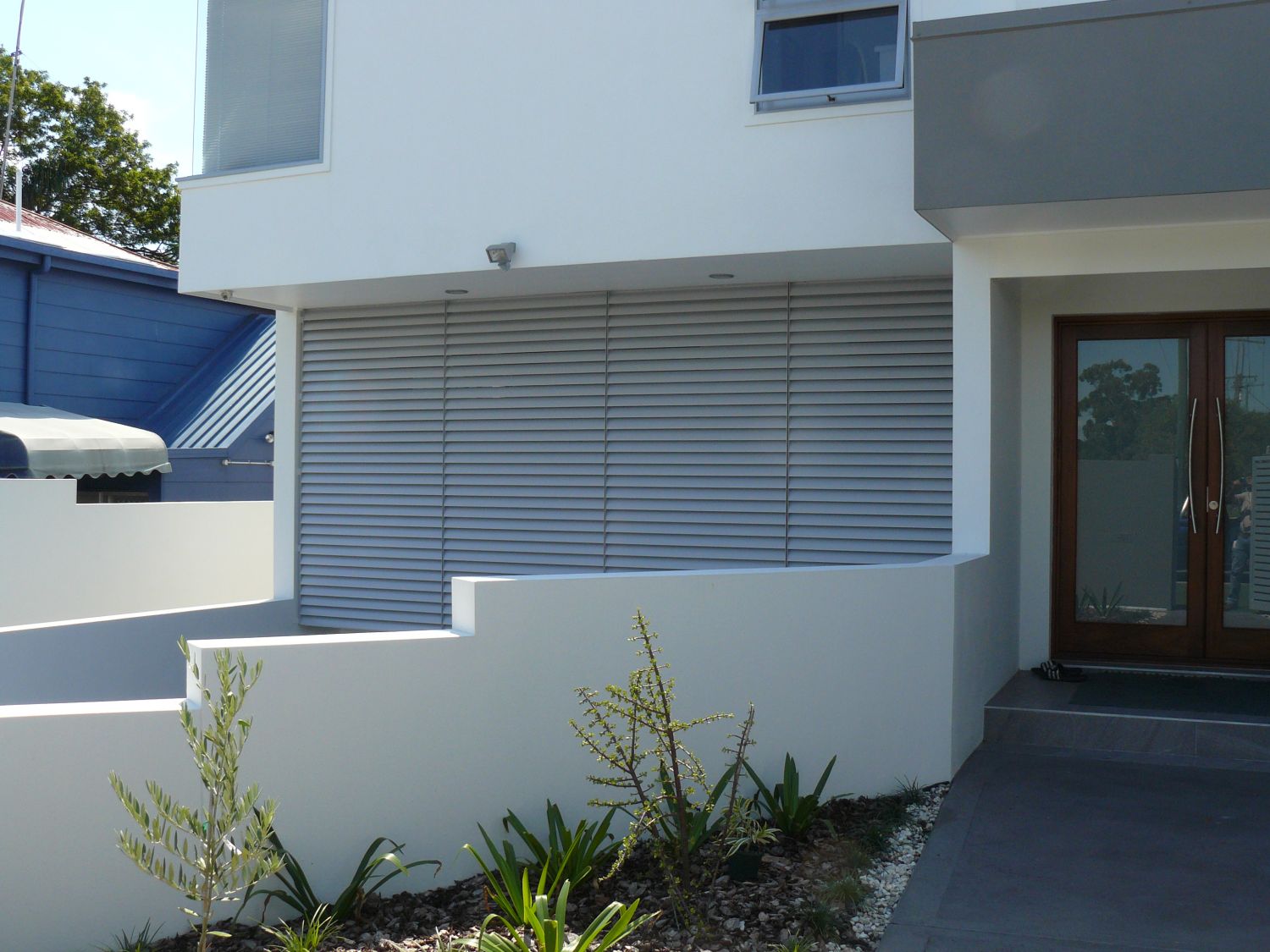

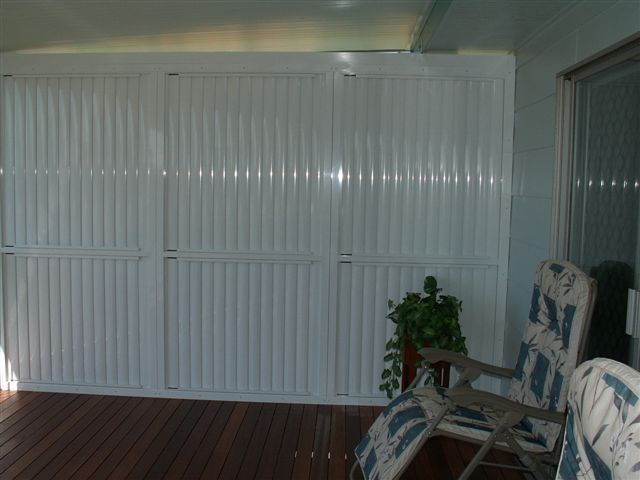

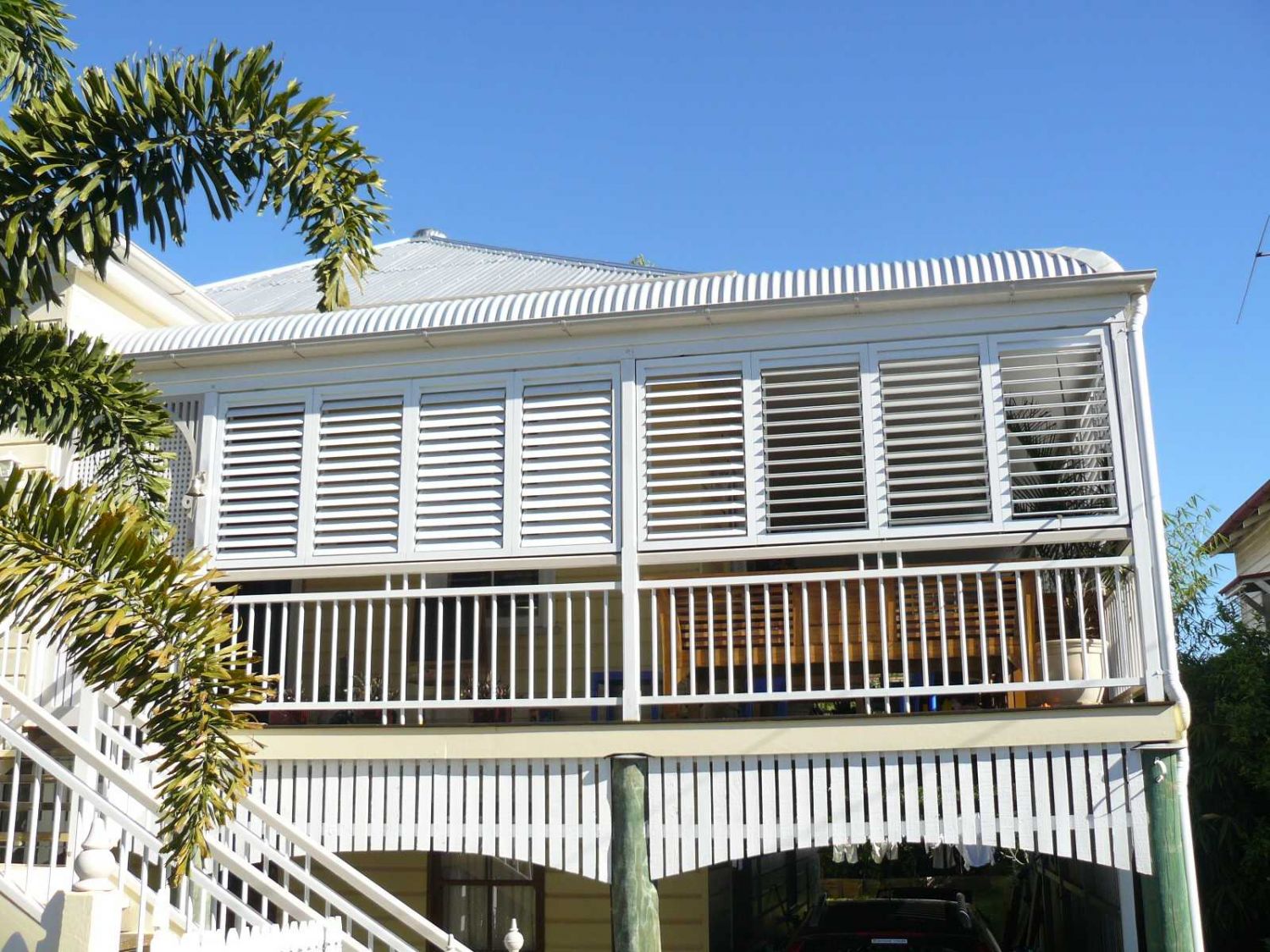

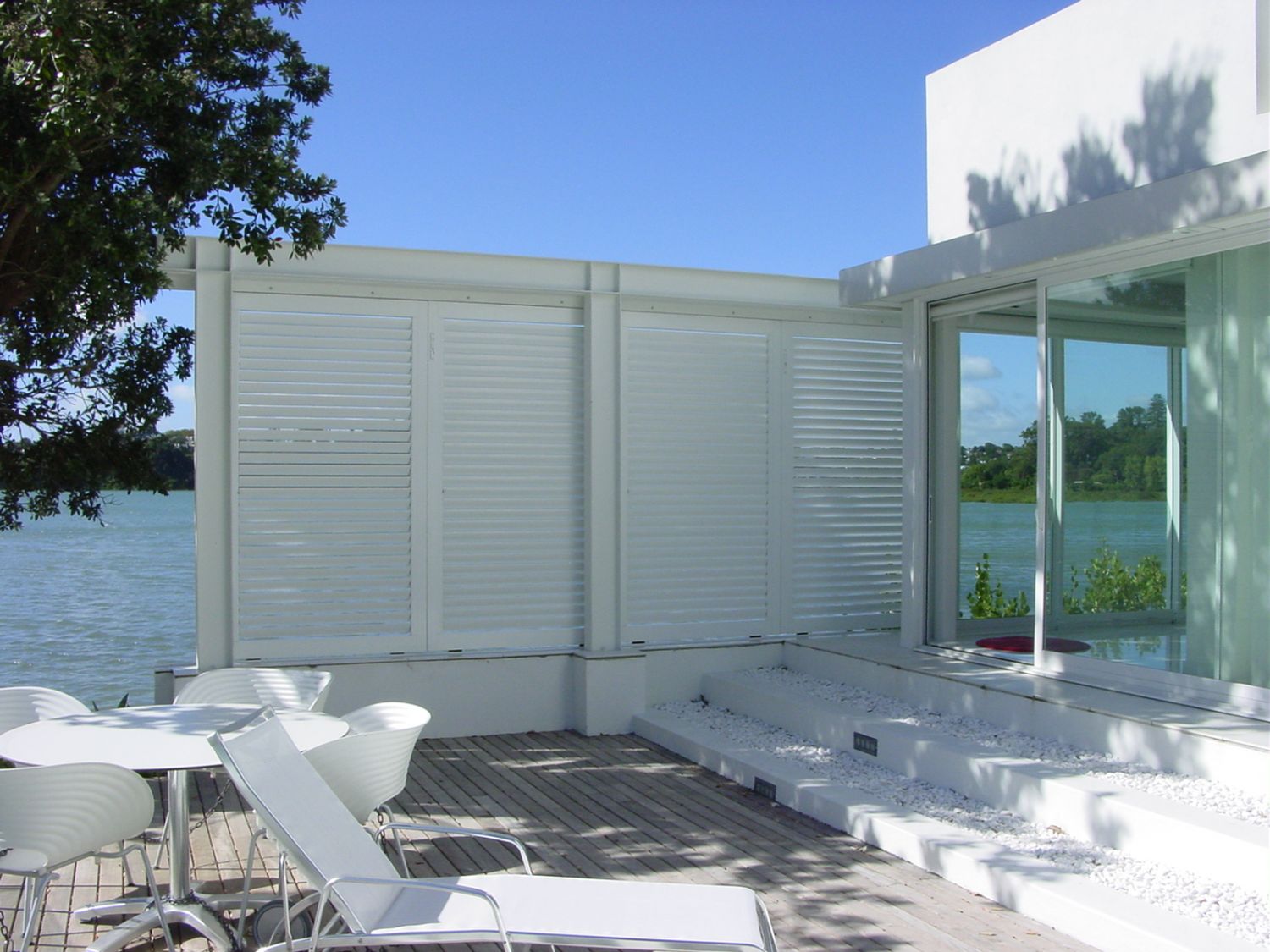

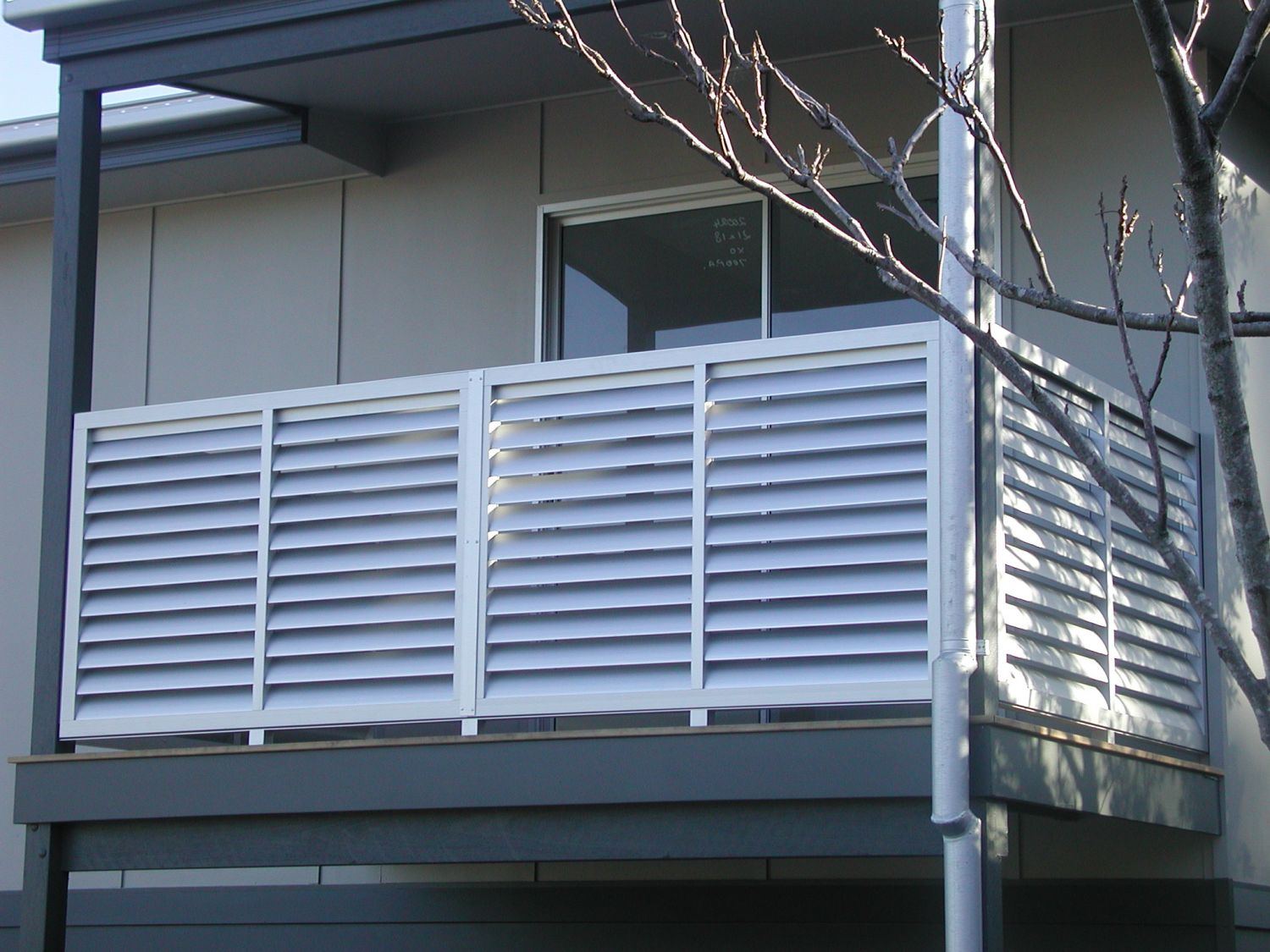

Fixed

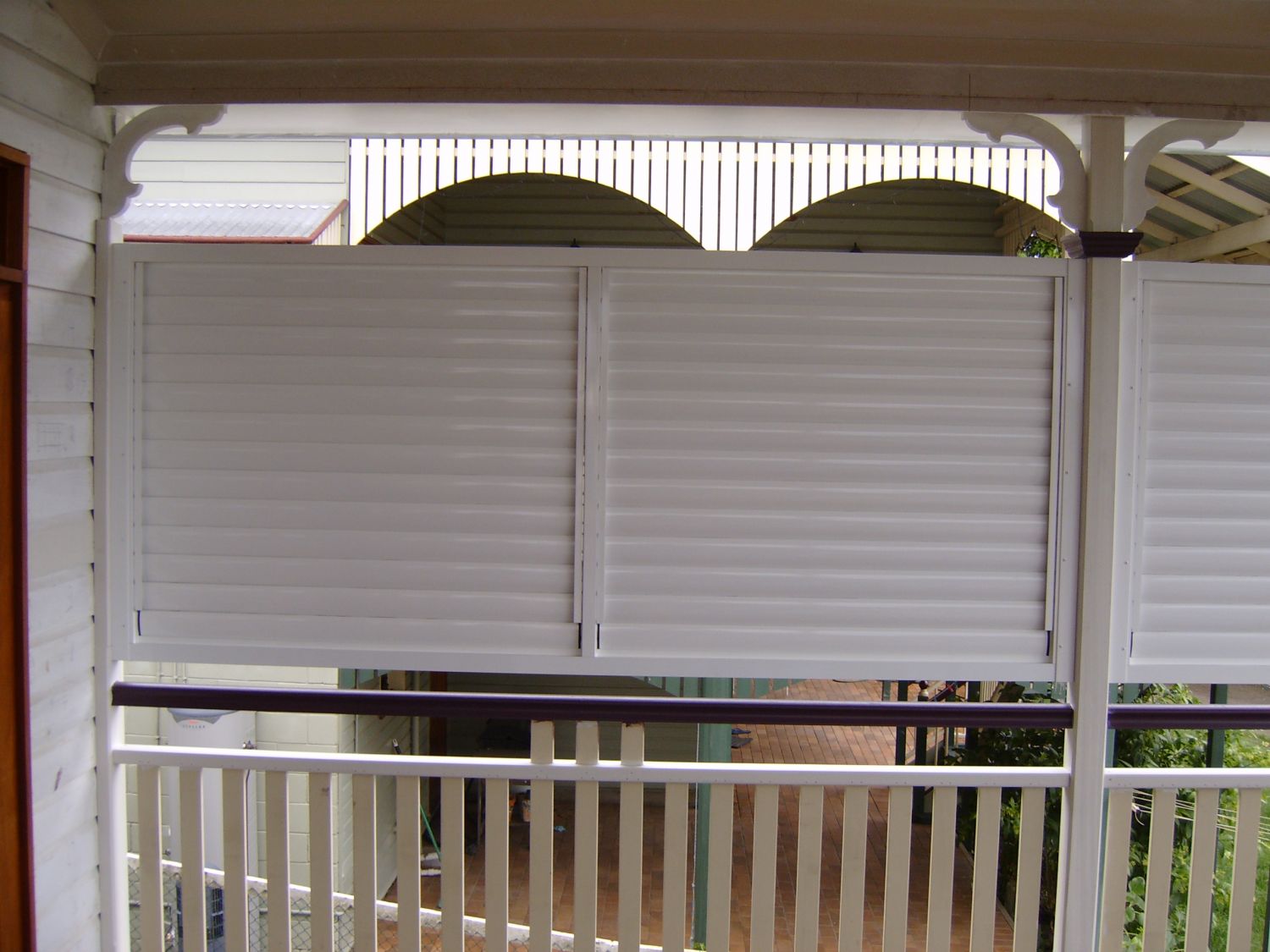

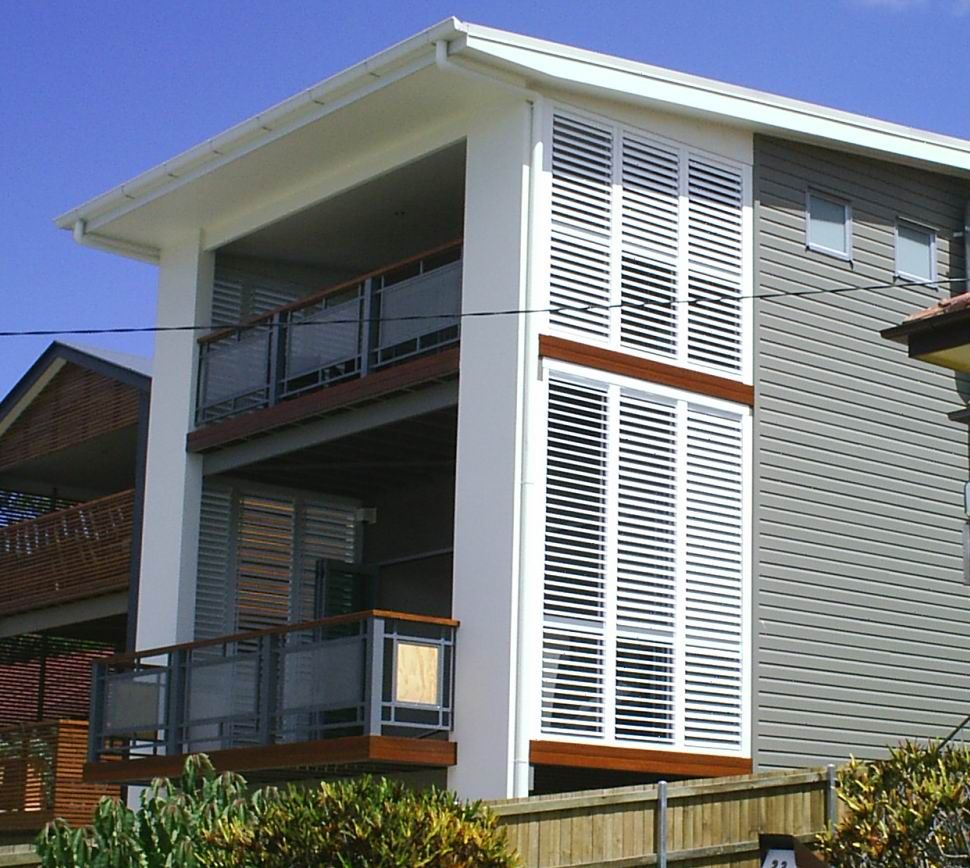

A Fixed Panel Louvre offers the simplest form of installation and operation. C channels can be fixed permanently to the top and bottom of the application and the Fixed Panel Louvre then pivots inside the frame work. Flashing will be provided to cover gaps on the left and right of the front and back of the application. H section is also available for joining panels to create strength and stability over multiple panel installation, as well as standoff brackets which offer installation off the window to provide access for ventilation and cleaning.

Ideal Applications

Window Covering, Privacy Screening, Balcony/Patio Enclosure

Details

  • Maximum Panel Width

    1100 mm

  • Maximum Panel Height

    3000

  • Style Options

    DLi, CL

  • Blade Options

    90, 150

  • Blade Orientations Options

    Horizontal, Vertical

  • Panel Filler Options

    Glass, Aluminium

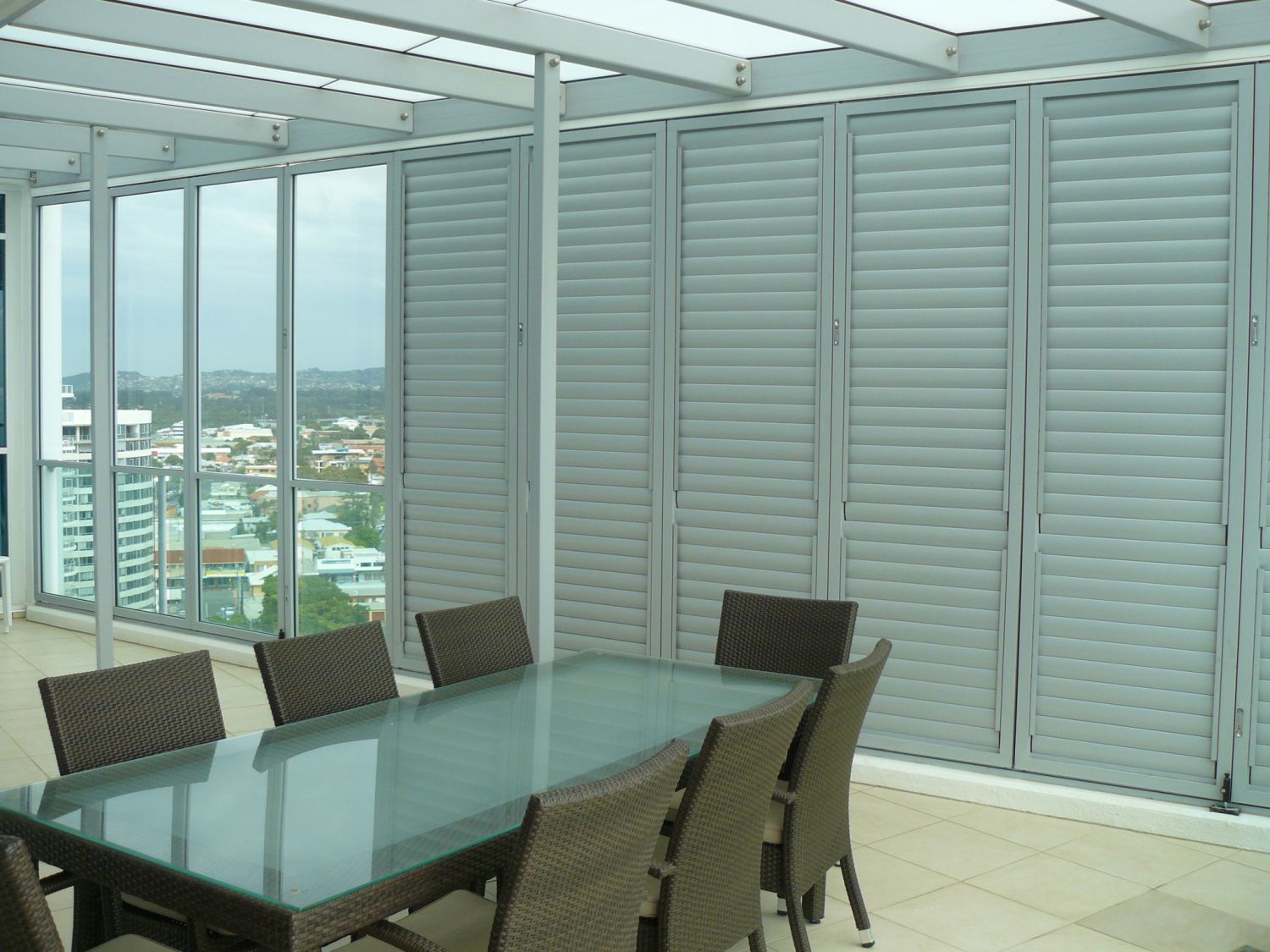

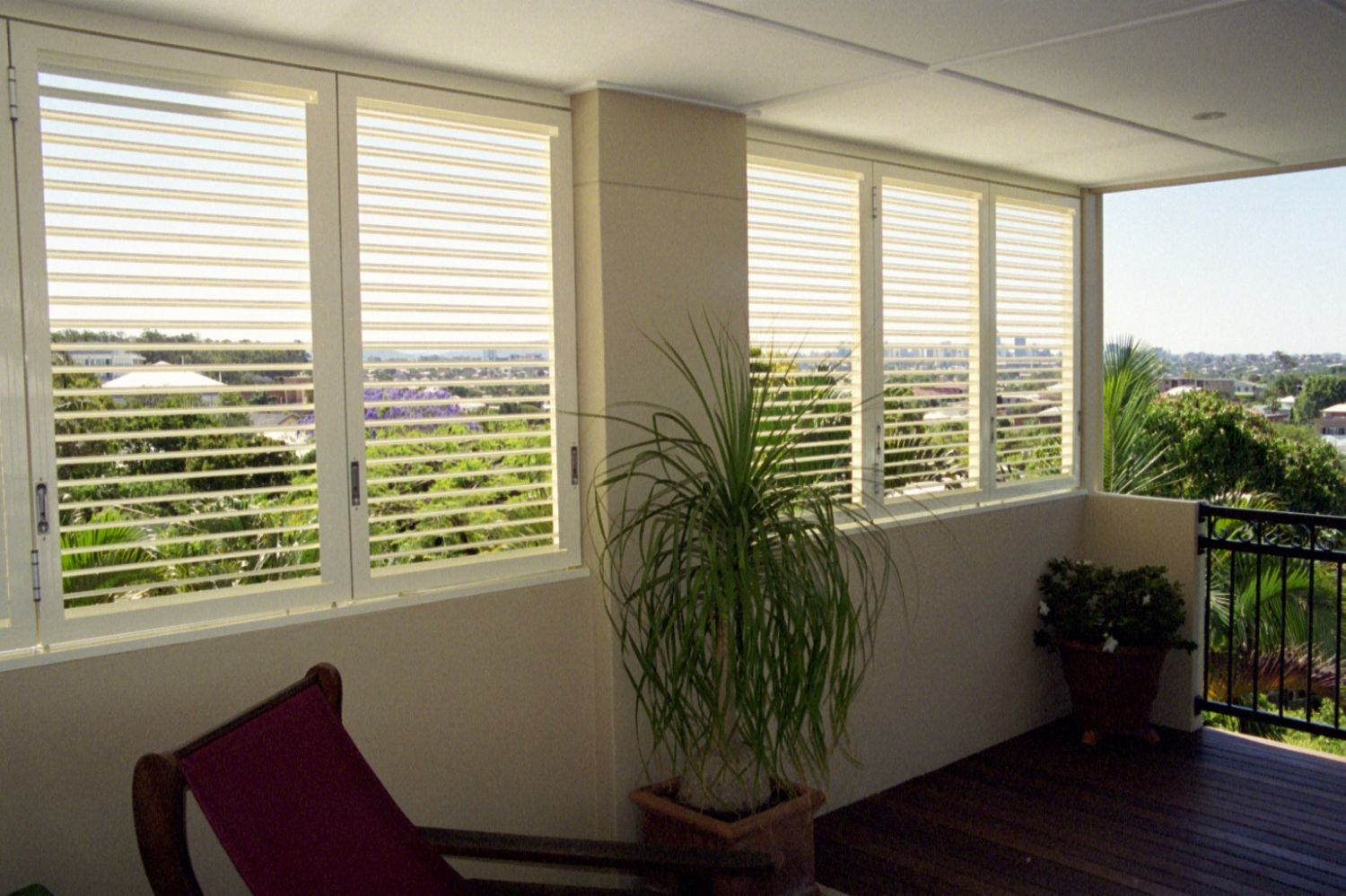

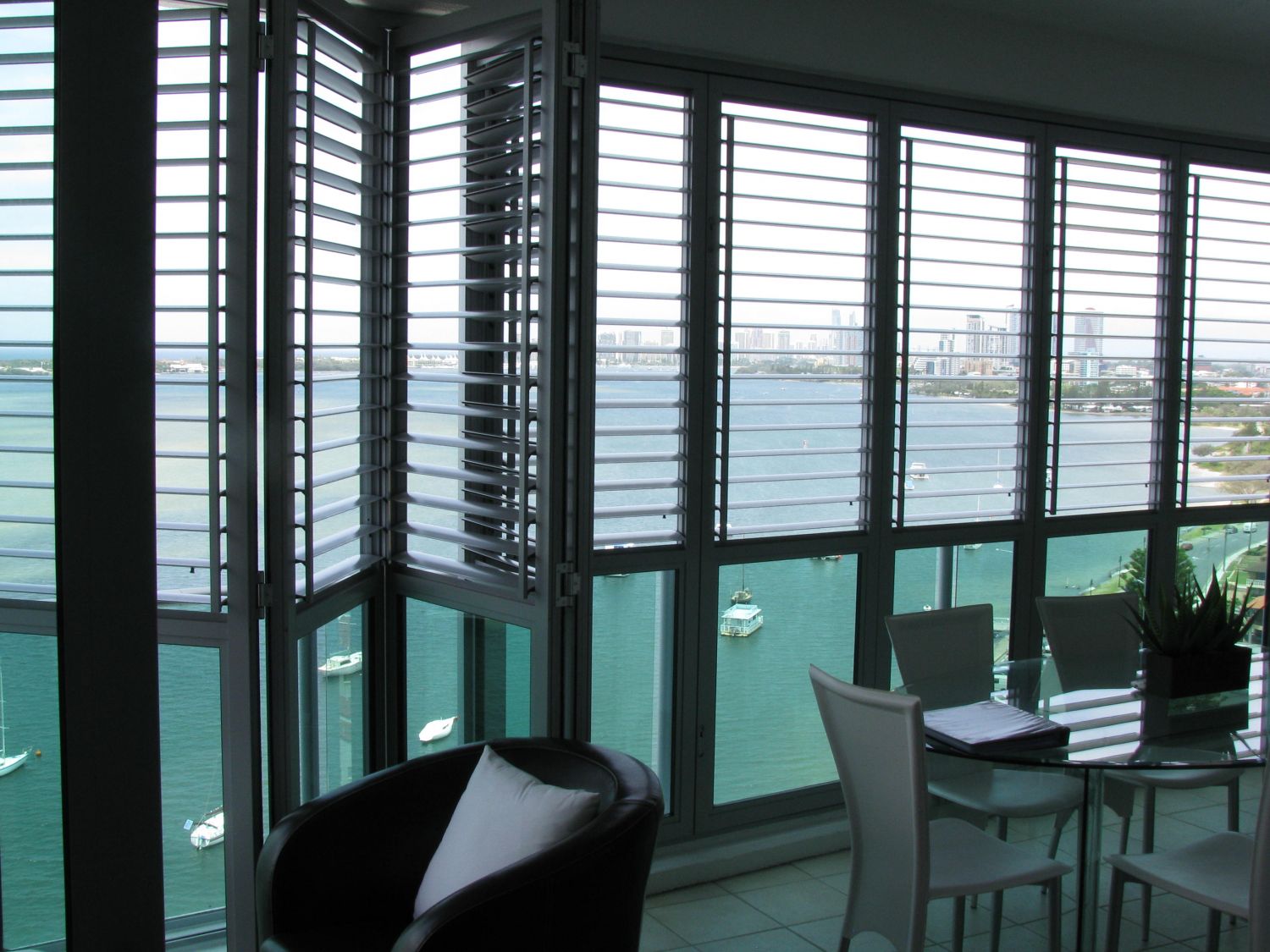

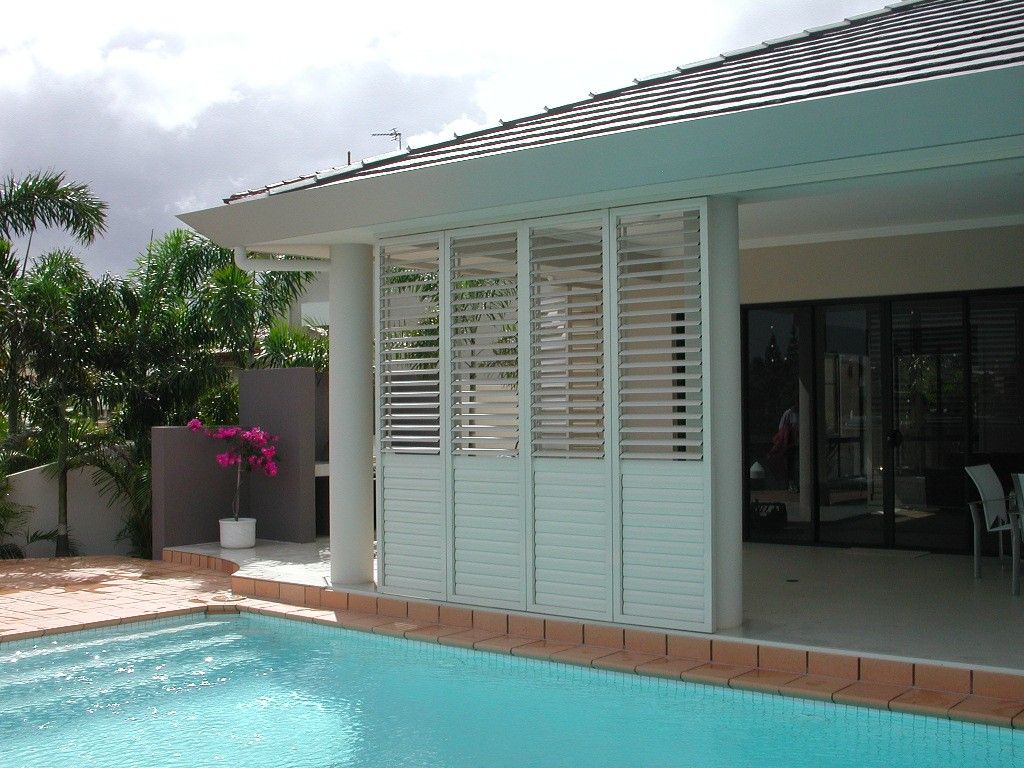

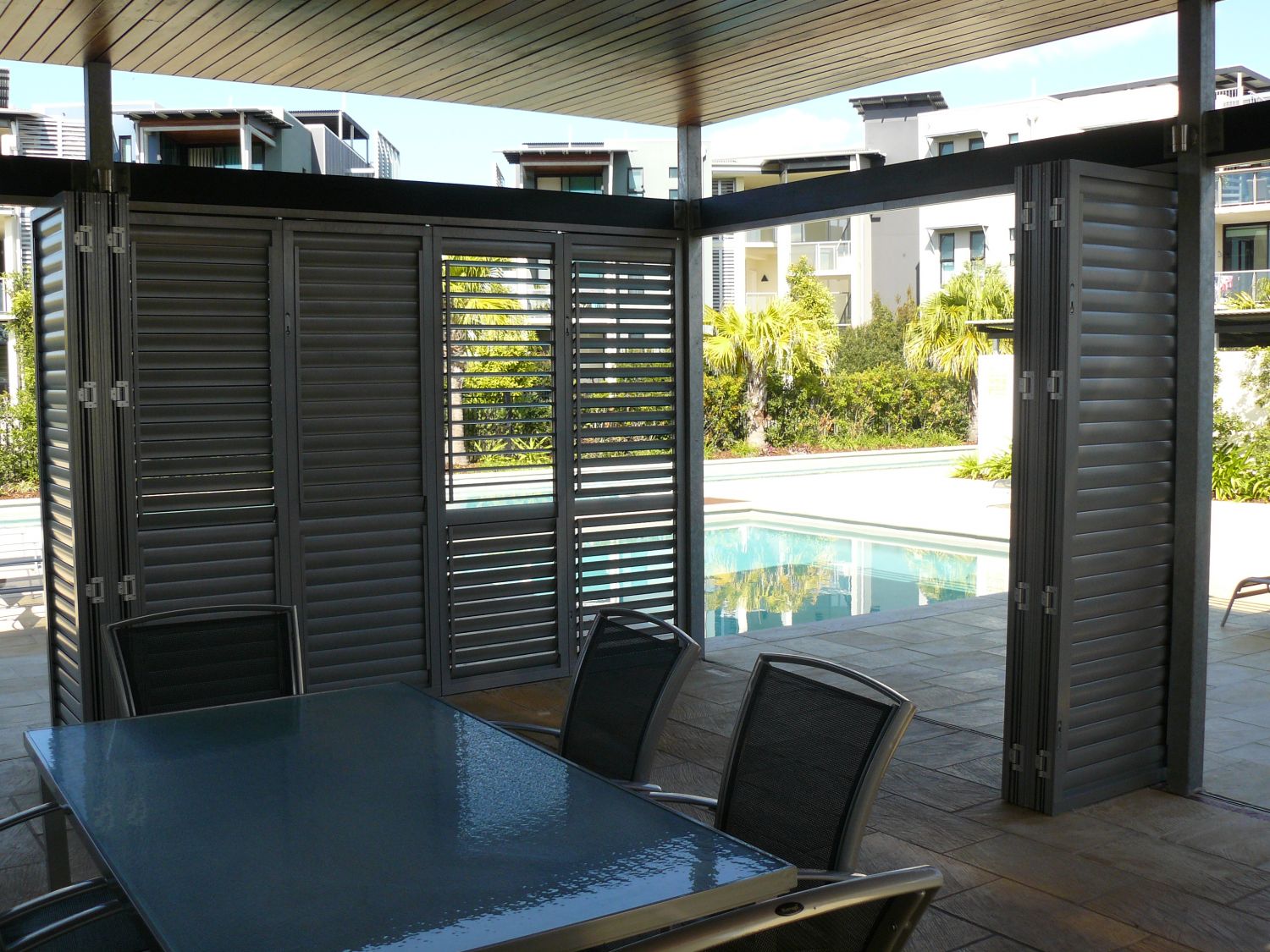

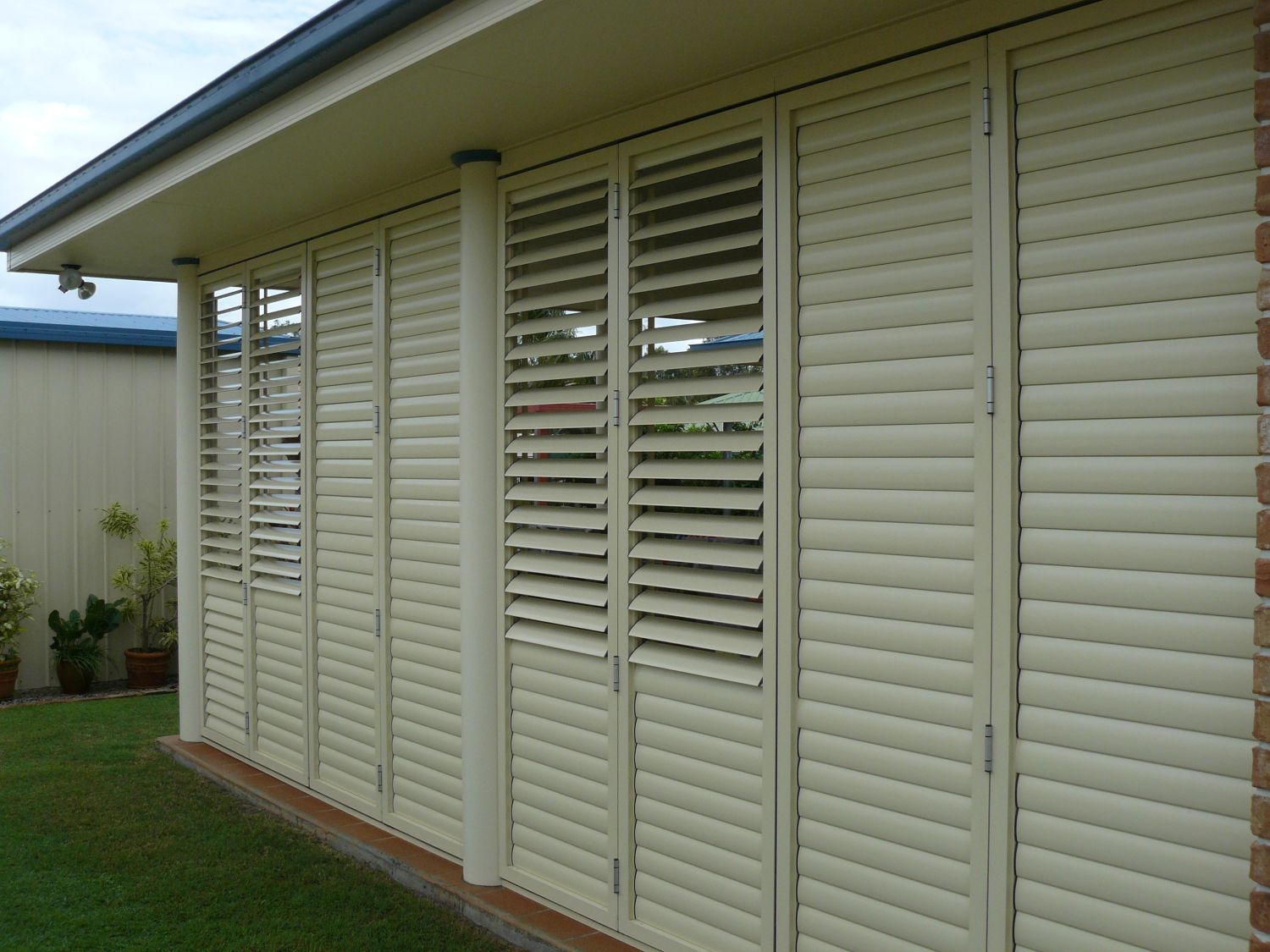

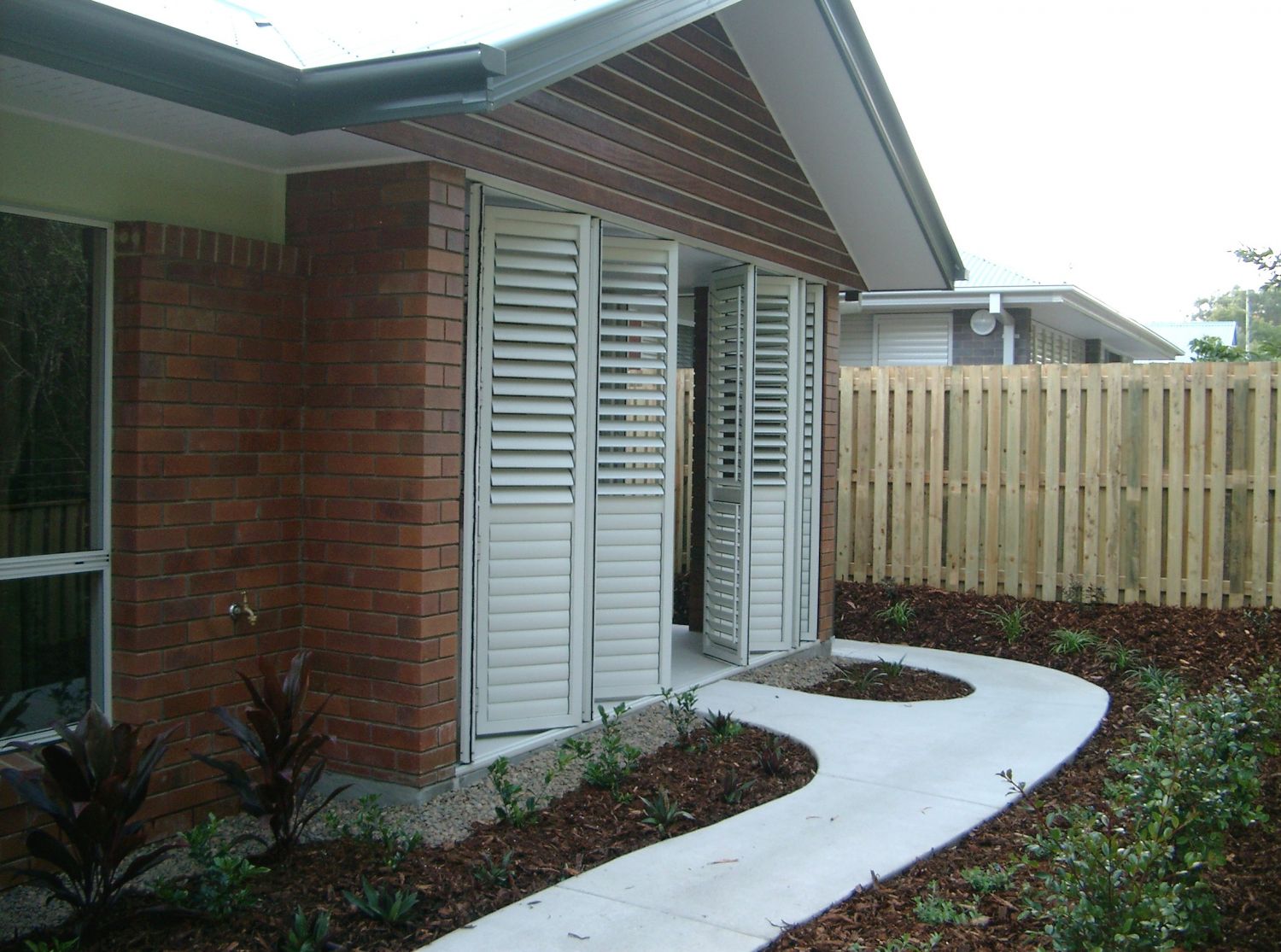

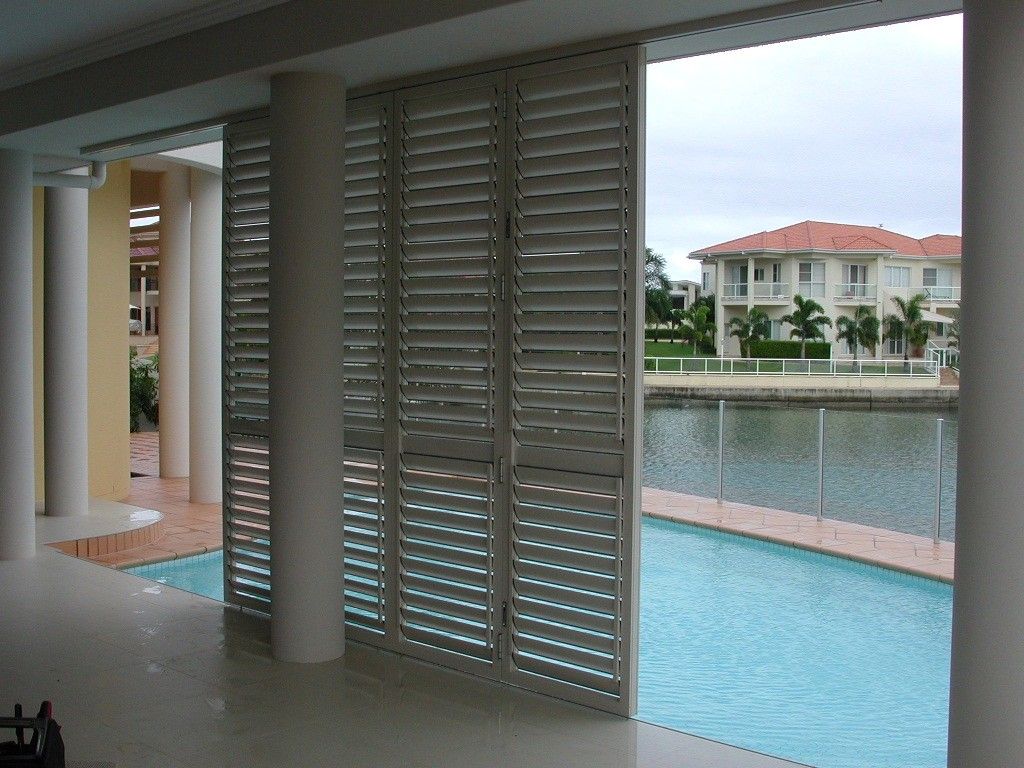

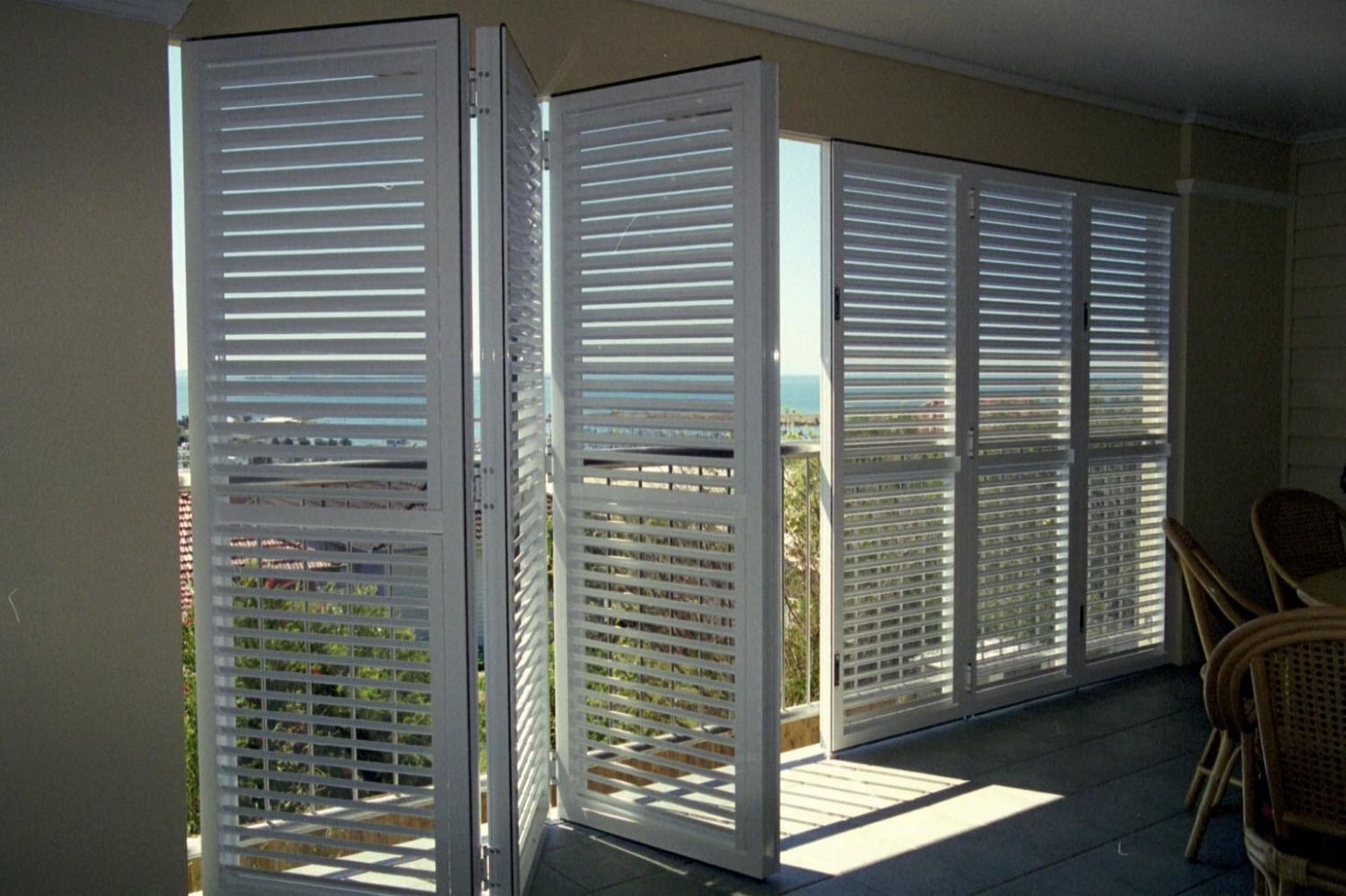

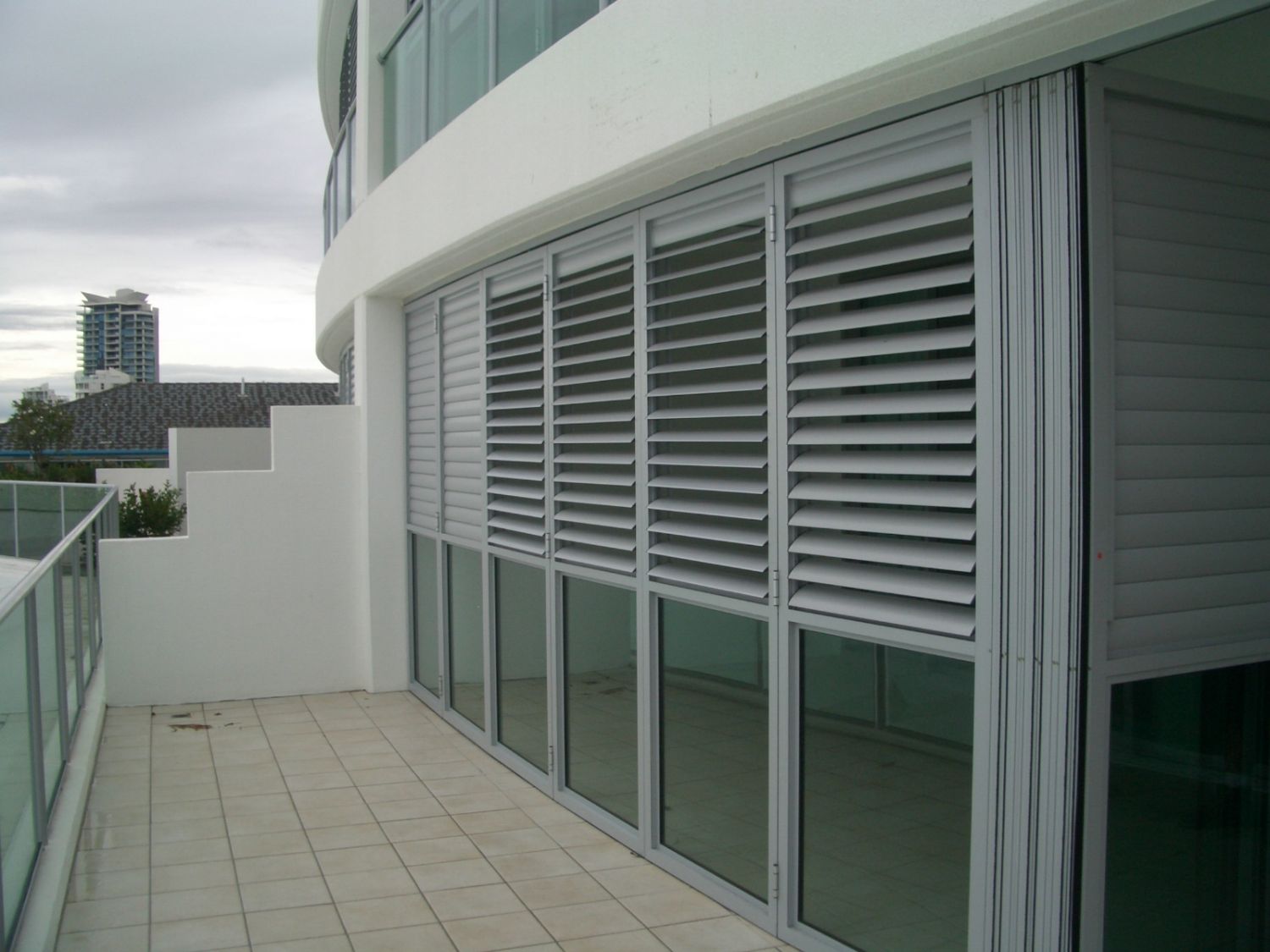

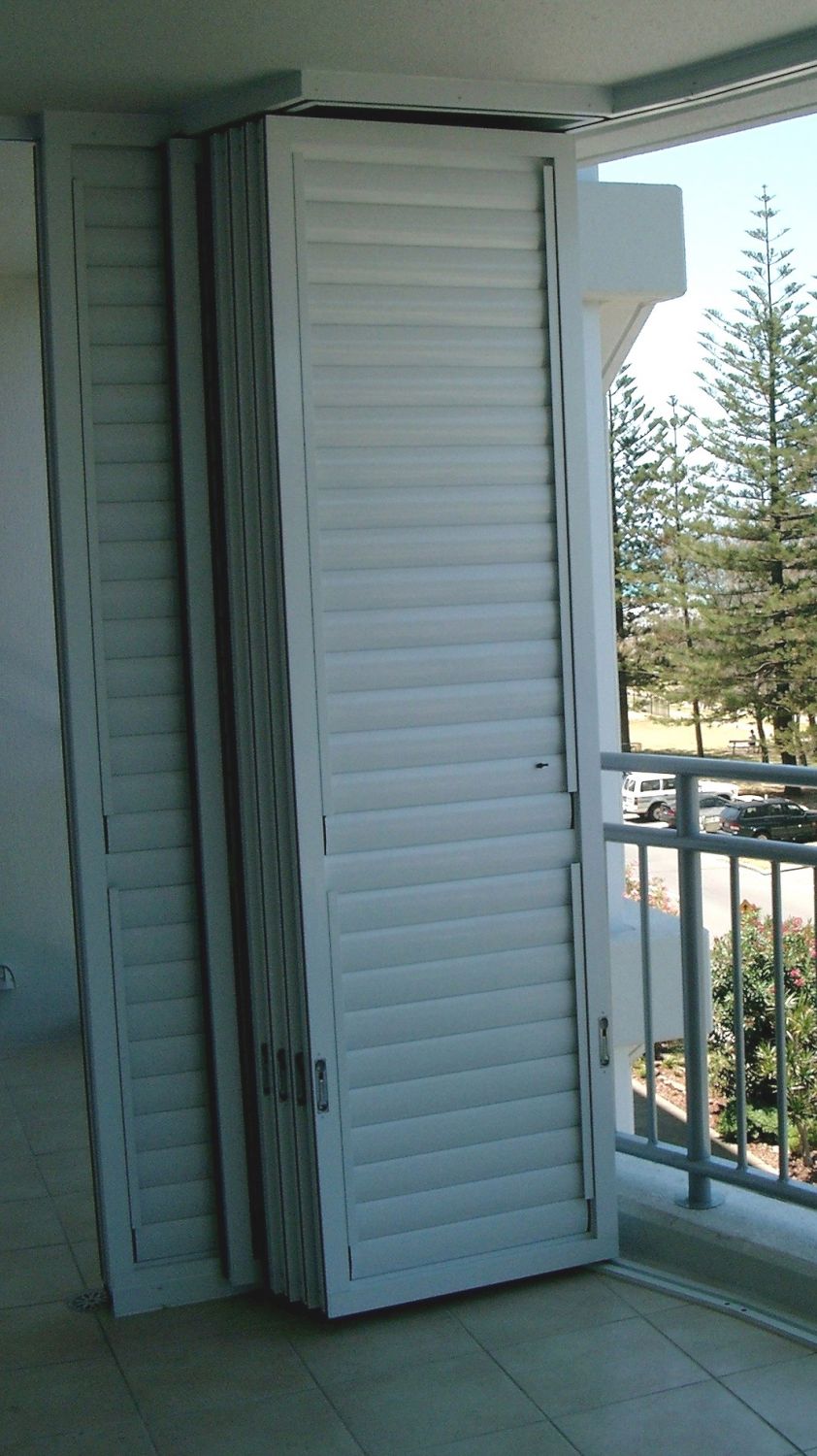

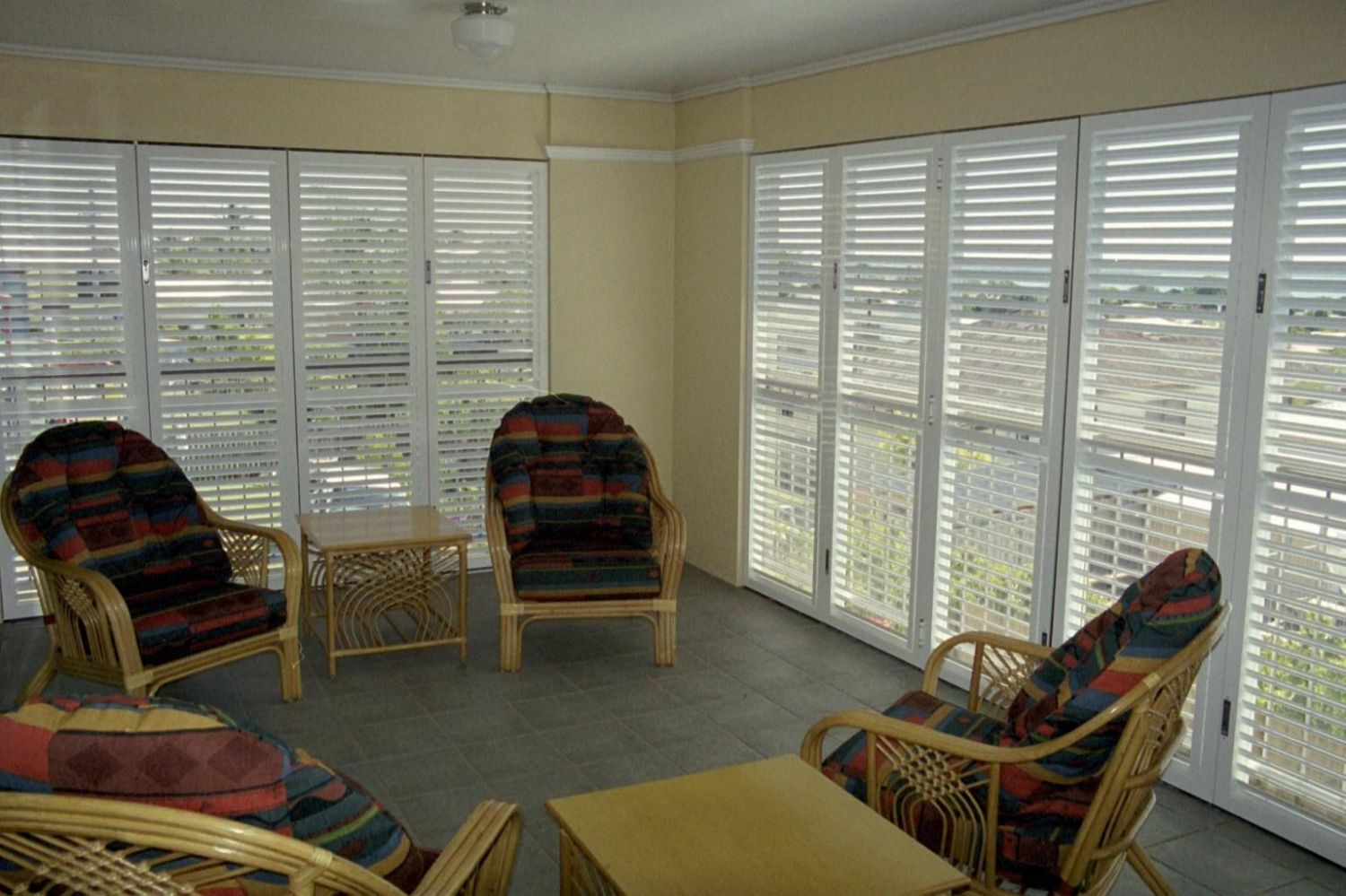

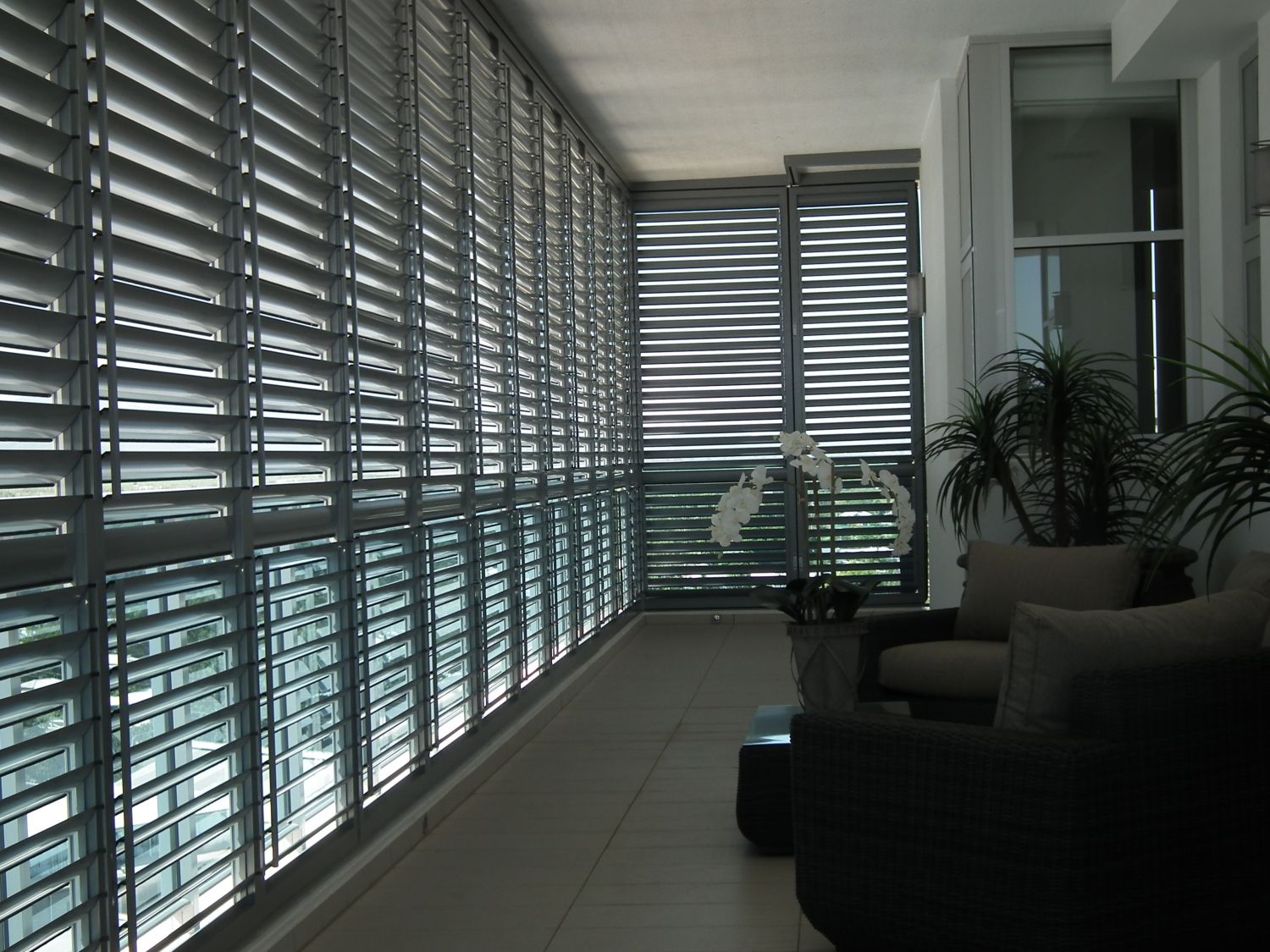

Bi Fold

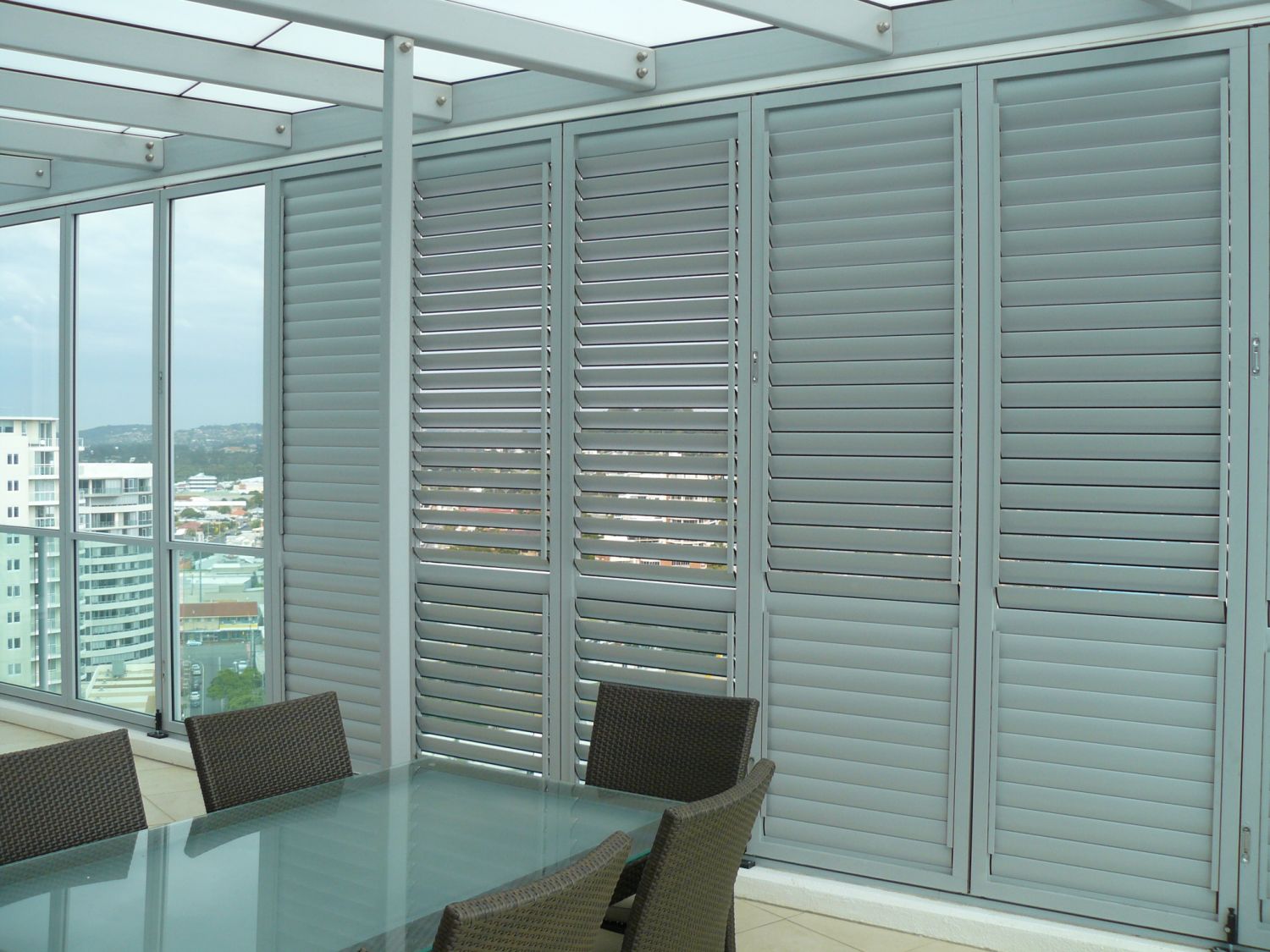

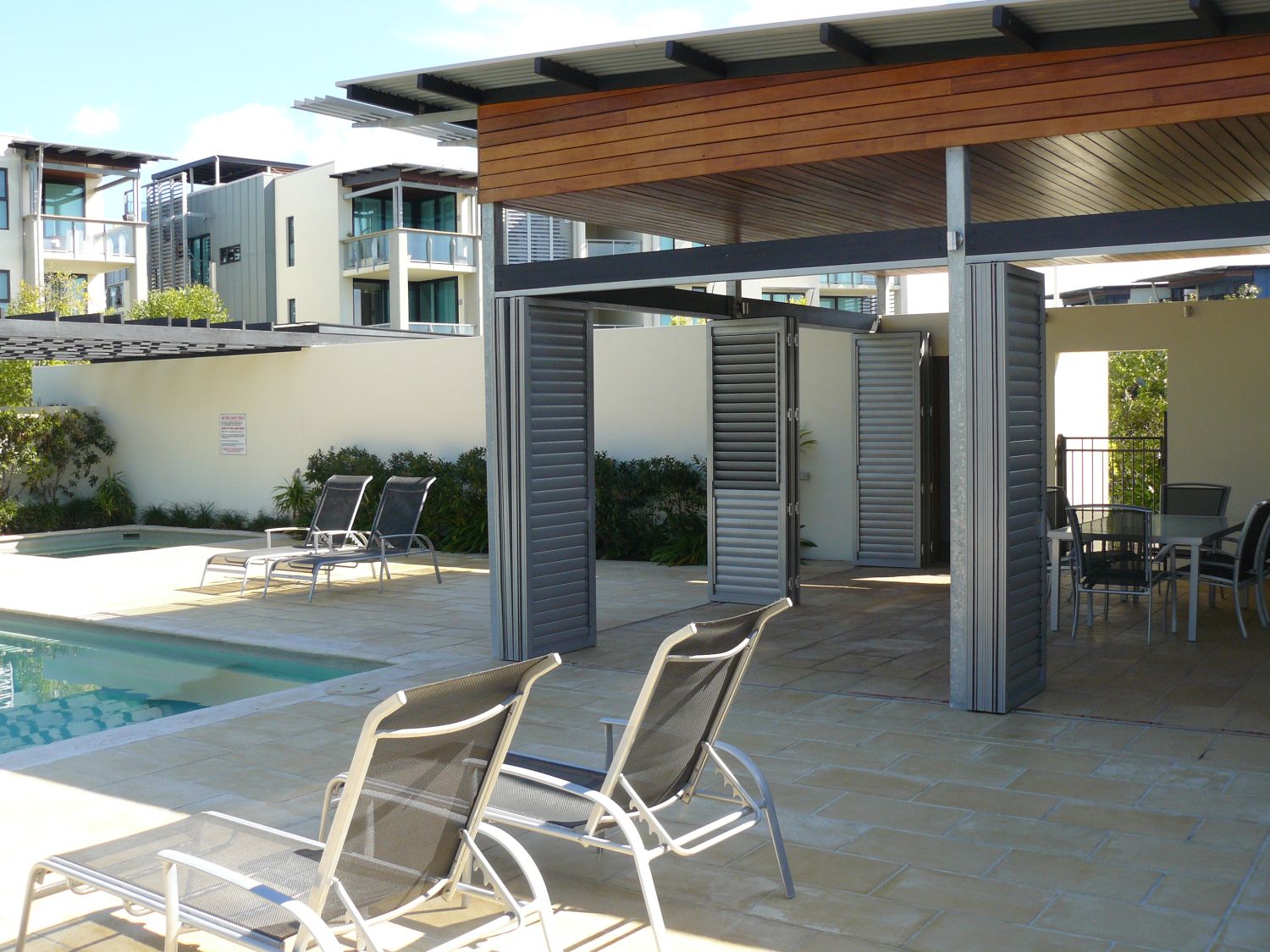

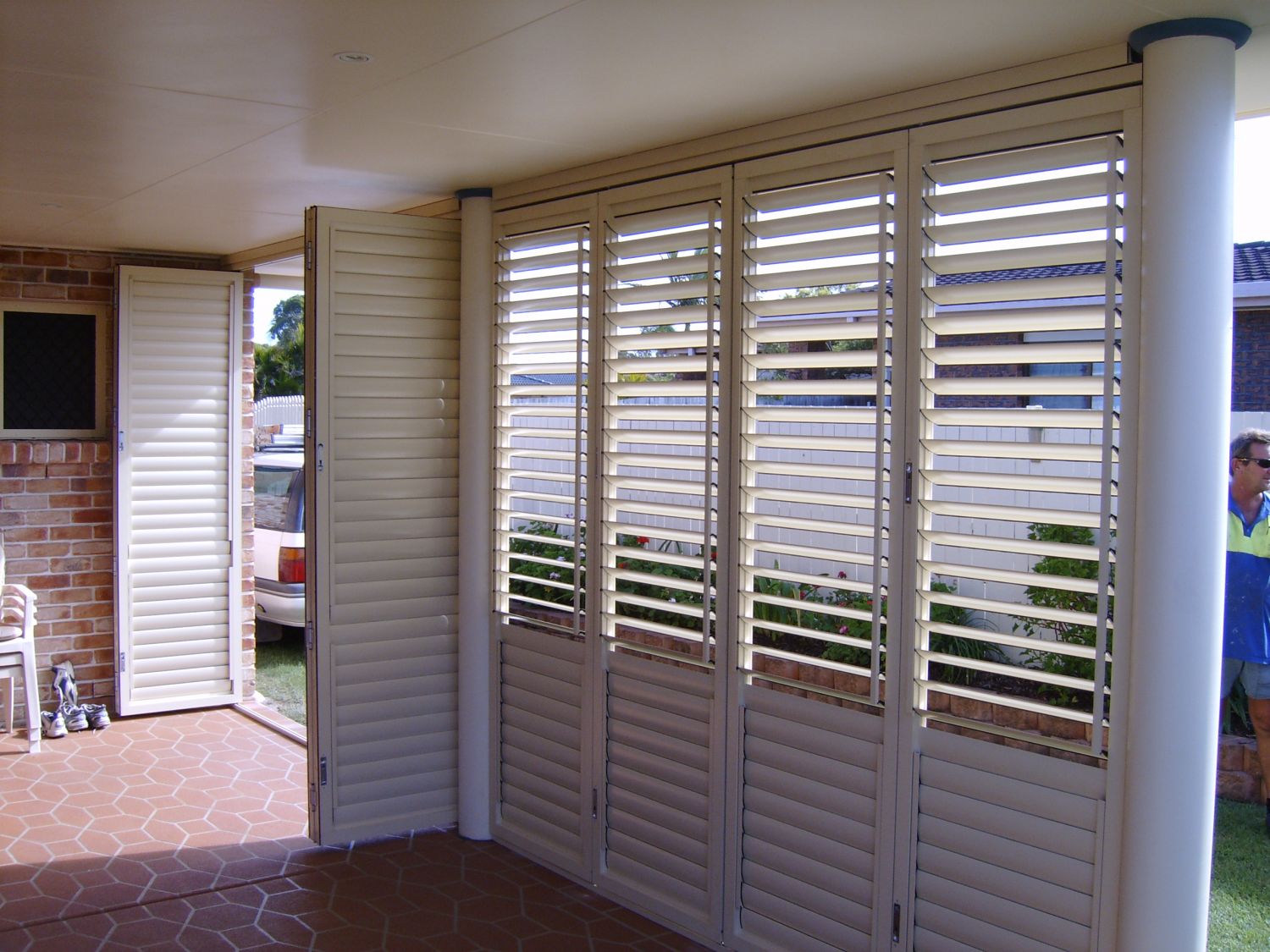

Bi-fold Louvre shutters provide a versatile option for balcony or patio areas by offering a choice of total enclosure and protection from the elements while in a closed position, yet still maintaining the availability of clearing the opening completely by folding the panels and pushing them to one side. Utilising practical nylon pivots, the panels can concertina either in or out by running along top and bottom tracks which are fixed permanently to the top and bottom of the application.

Ideal Applications

Balcony/Patio & Enclosure, Room Dividers

Details

  • Maximum Panel Width

    950 mm

  • Maximum Panel Height

    3000

  • Style Options

    DLi, CL

  • Blade Options

    90, 150

  • Blade Orientations Options

    Horizontal, Vertical

  • Panel Filler Options

    Glass, Aluminium

Gallery

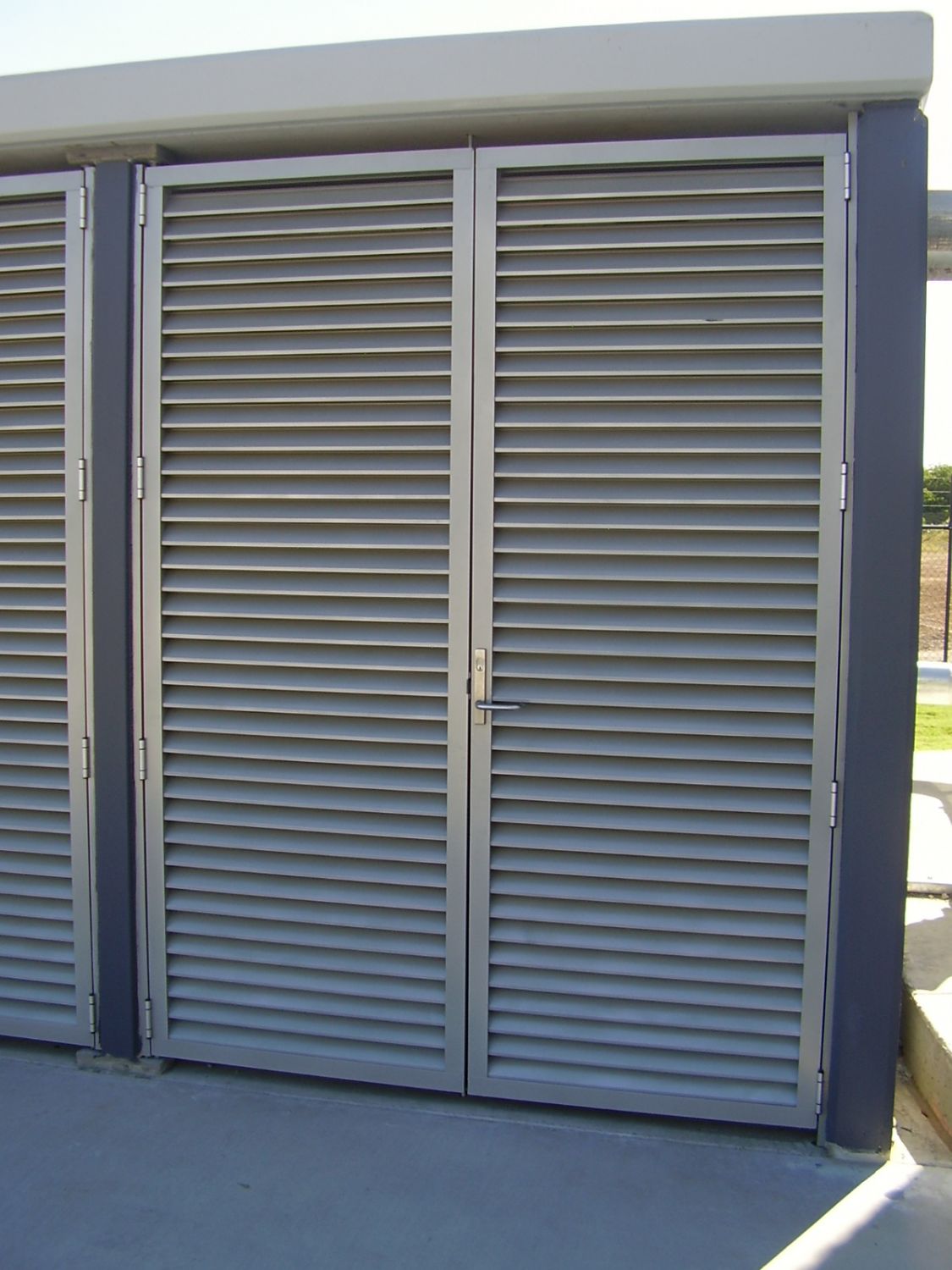

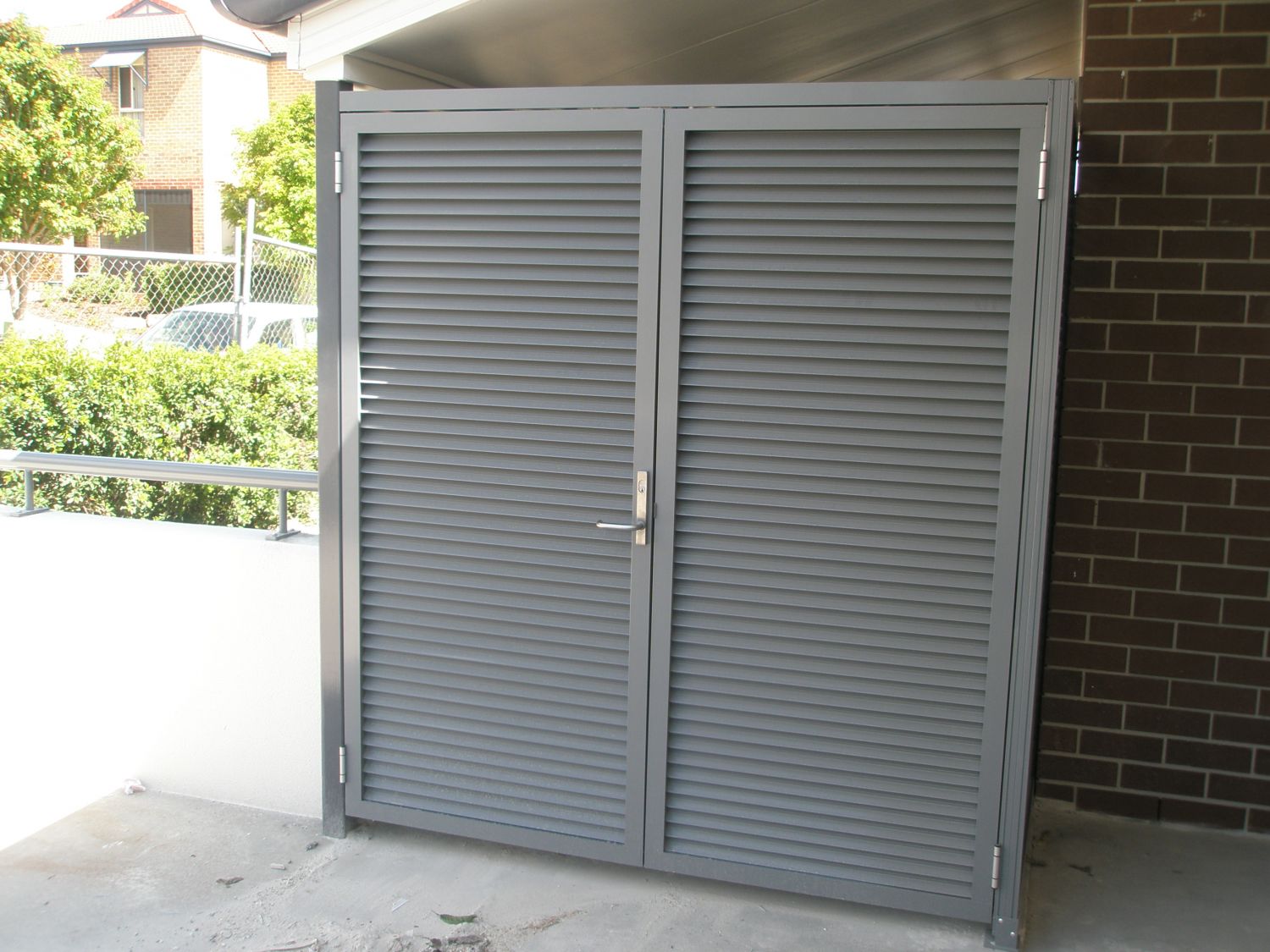

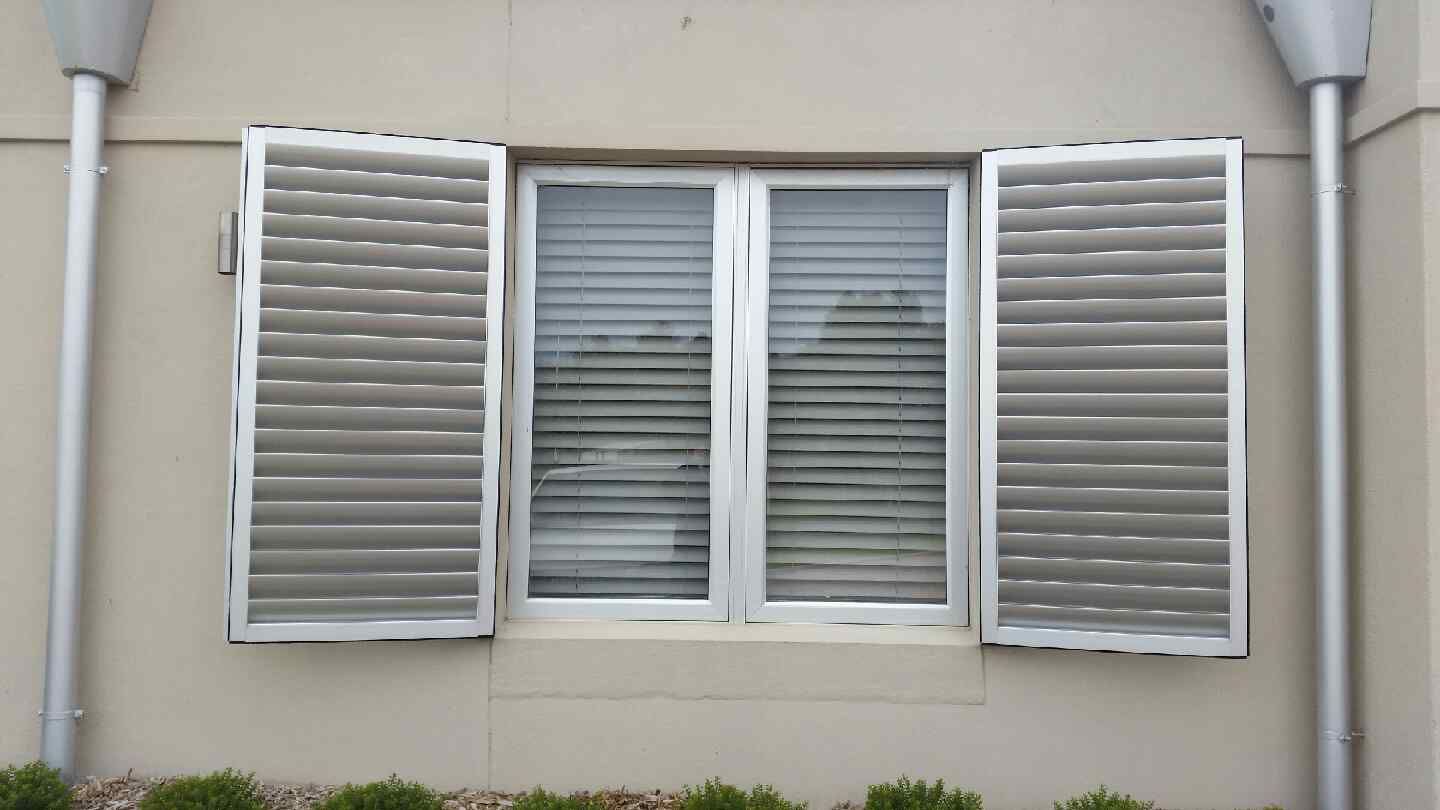

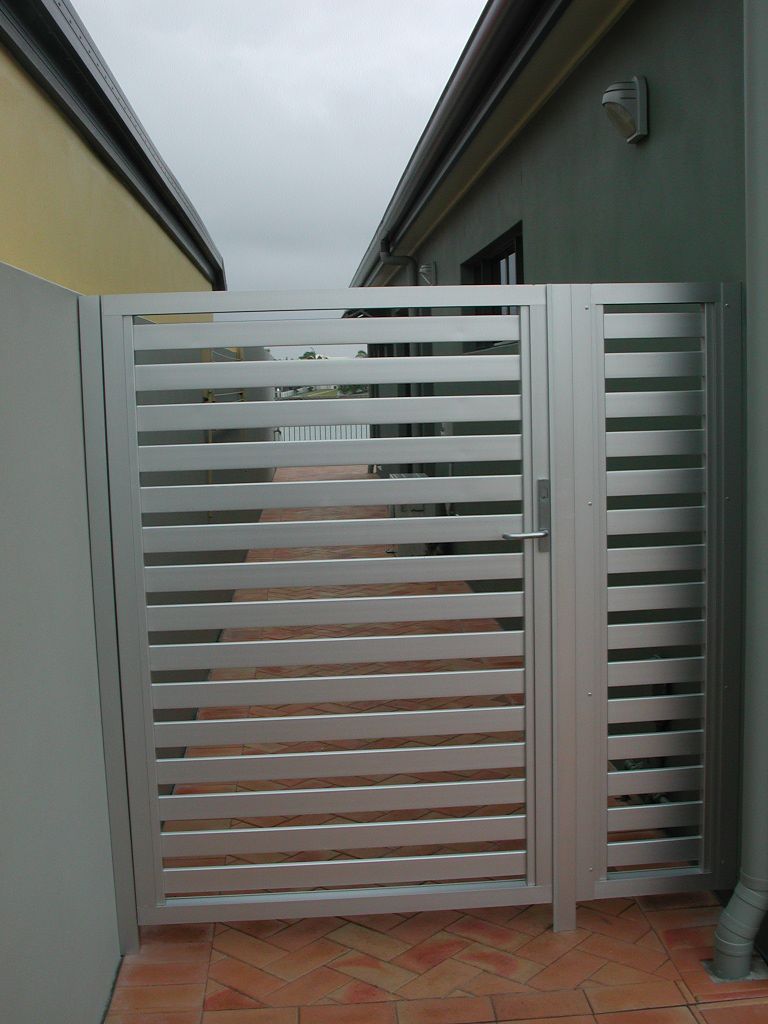

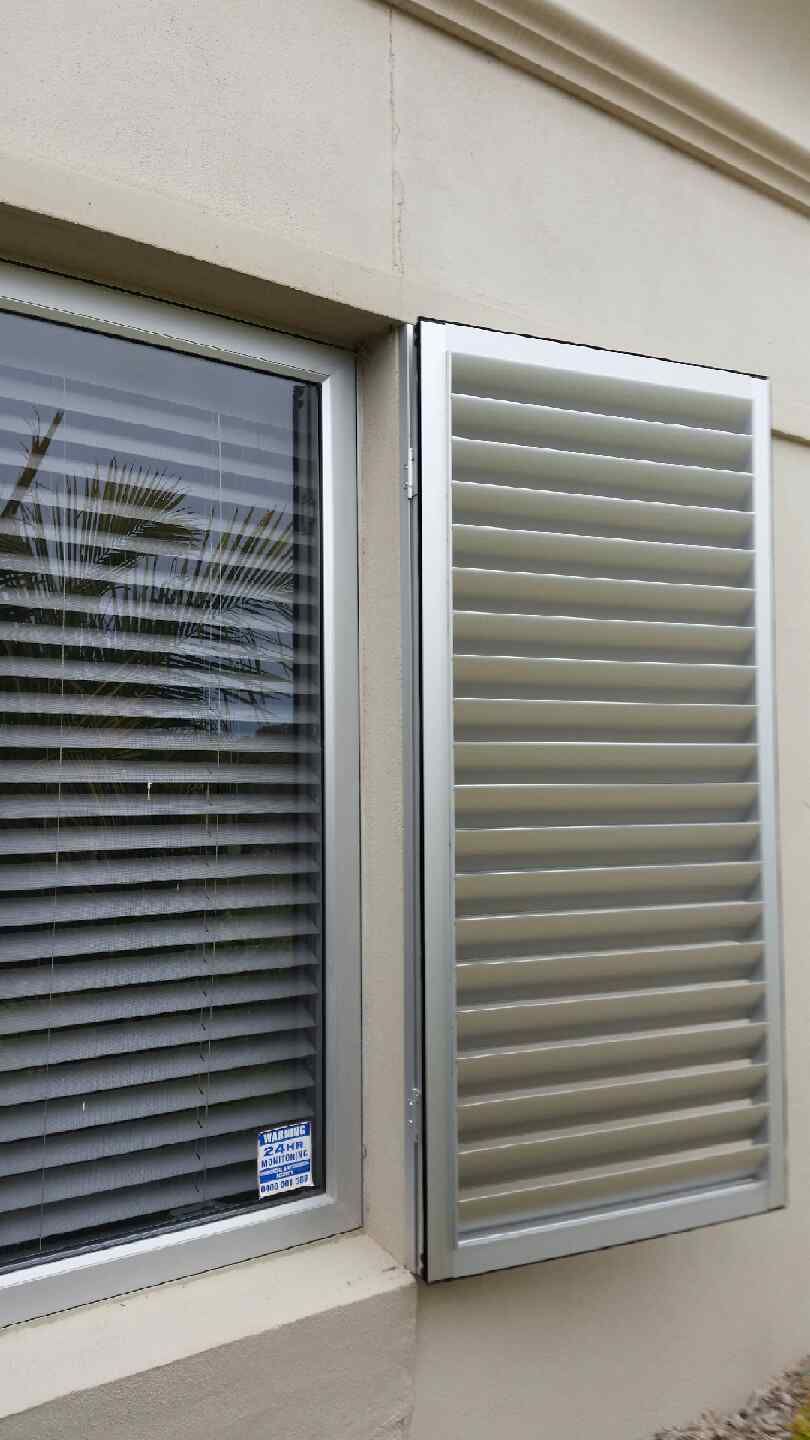

Hinged

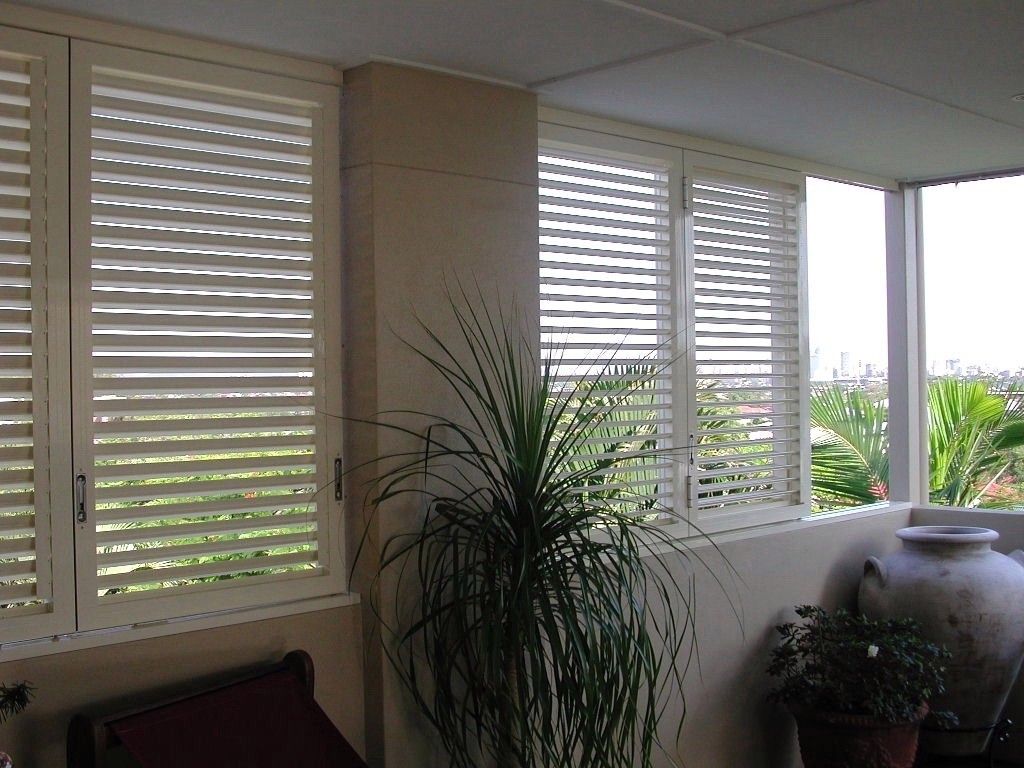

Hinged Louvre shutters are a practical and aesthetically pleasing choice for both interior and exterior windows and doorways. Available to swing either inwards or outwards, Elipso Hinged Louvre’s can be supplied with L or Z framing to provide a neat finish.

Ideal Applications

Interior Openings, Doorways

Details

  • Maximum Panel Width

    800 mm

  • Maximum Panel Height

    3000

  • Style Options

    DLi

  • Blade Options

    90

  • Blade Orientations Options

    Horizontal, Vertical

  • Panel Filler Options

    Glass, Aluminium

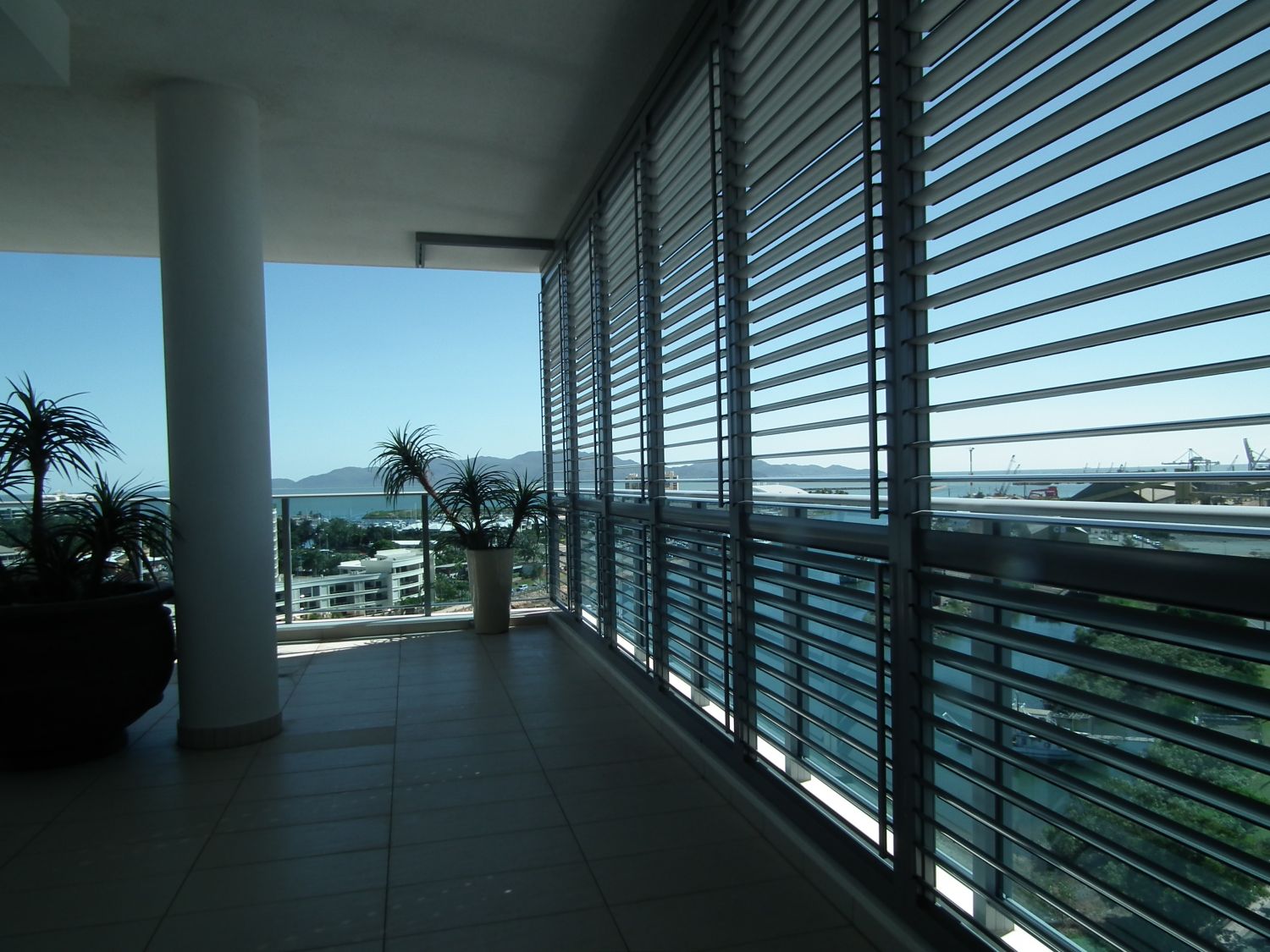

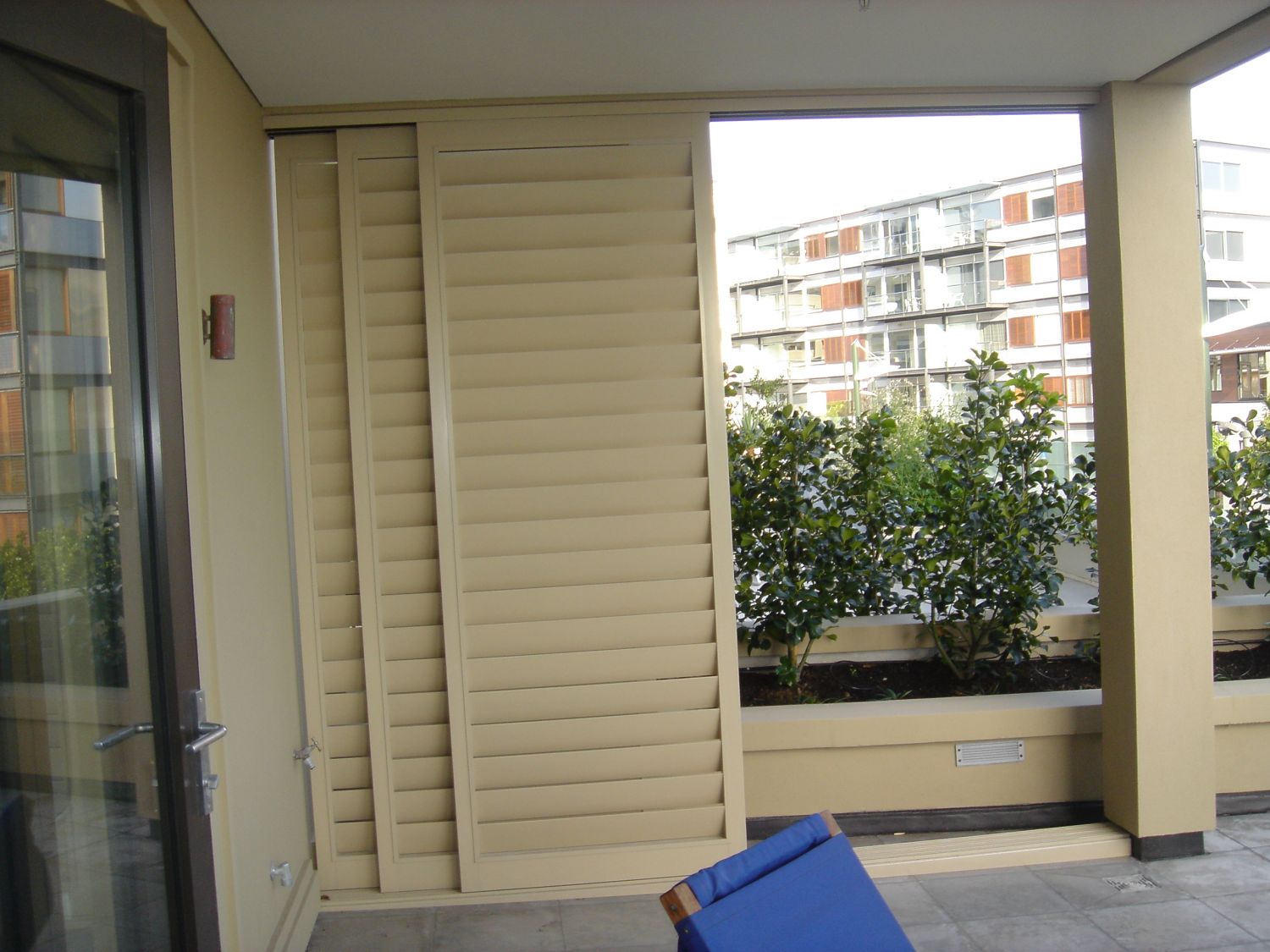

Sliding

Sliding Louvre shutters are an ideal choice for sun protection and privacy on applications where space around the opening is limited. Utilising practical nylon pivots, the panels can slide left or right by running along top and bottom tracks which are fixed permanently to the top and bottom of the application.

Ideal Applications

Balcony/Patio & Enclosure, Room Dividers

Details

  • Maximum Panel Width

    1000 mm

  • Maximum Panel Height

    3000

  • Style Options

    DLi, CL

  • Blade Options

    90, 150

  • Blade Orientations Options

    Horizontal, Vertical

  • Panel Filler Options

    Glass, Aluminium

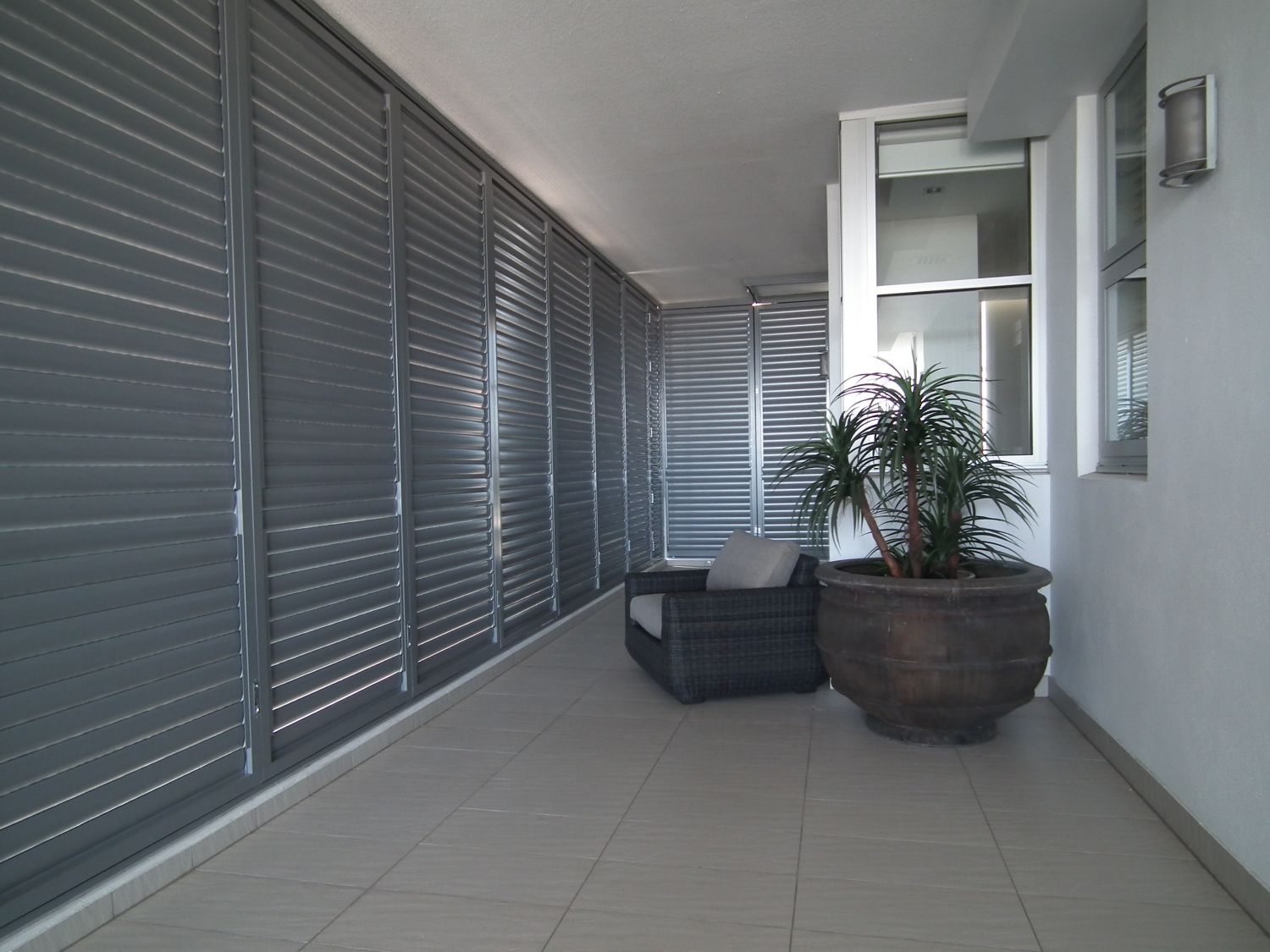

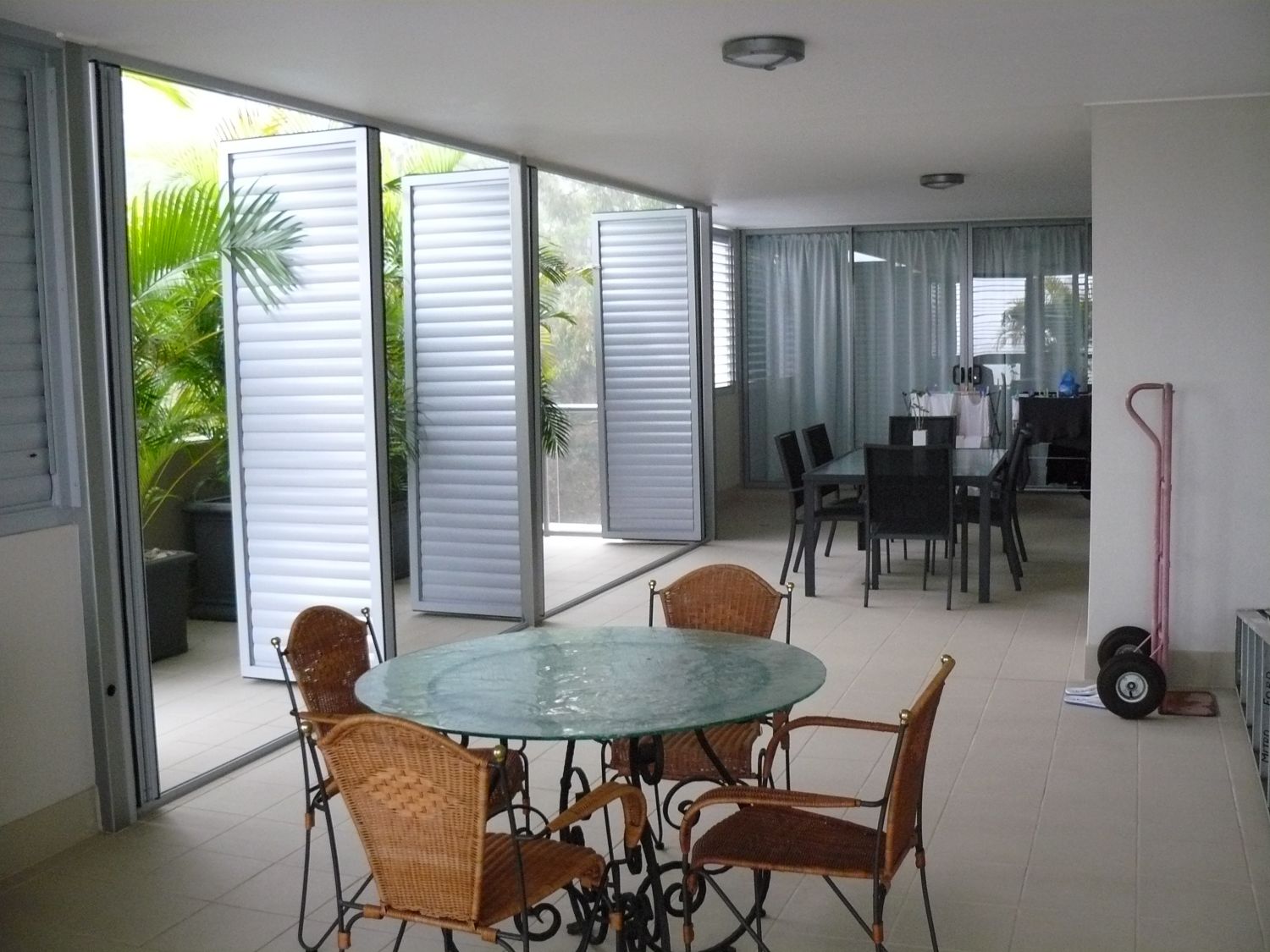

Stacking

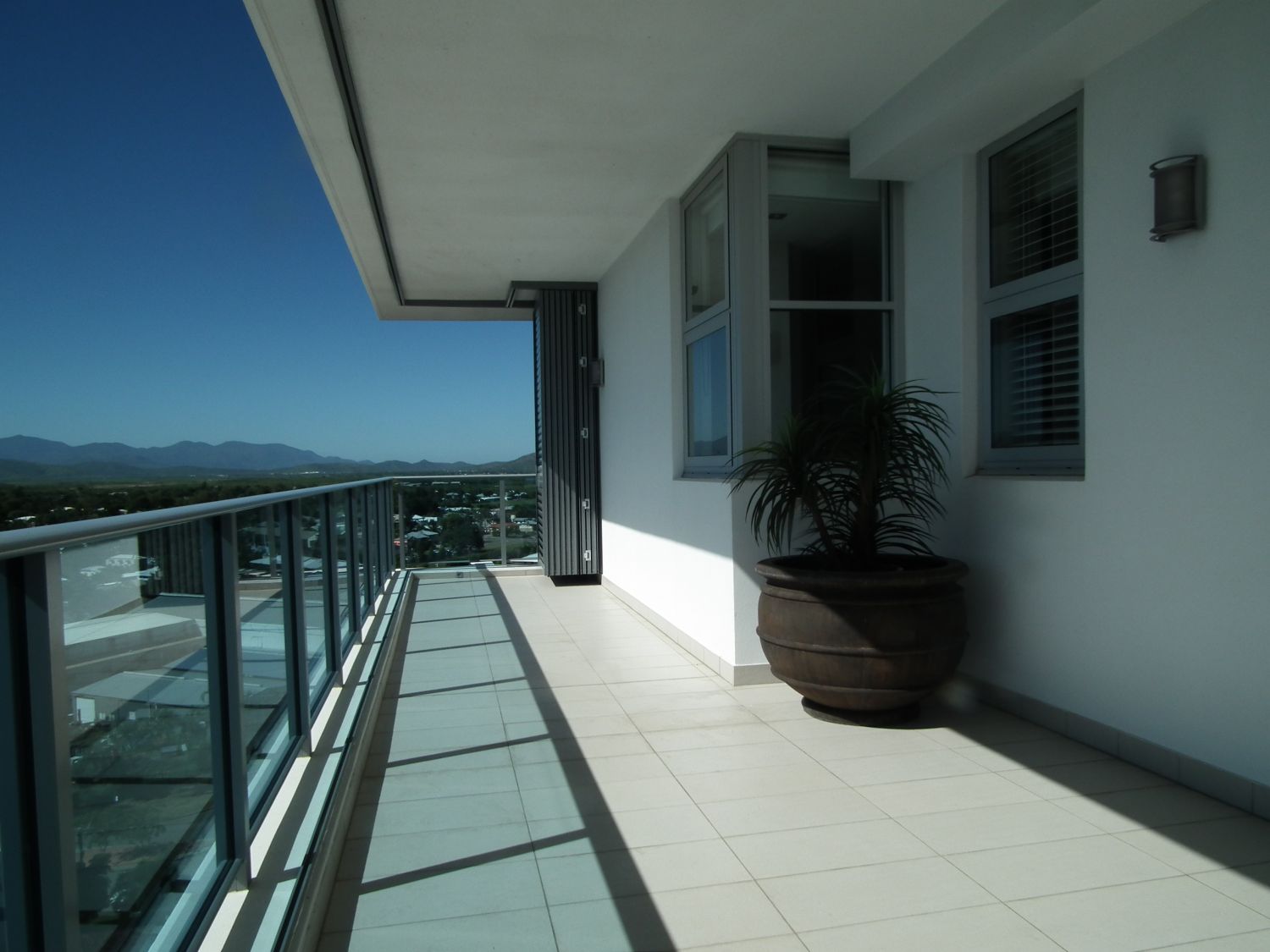

Stacking Louvre shutters add another dimension to the Sliding installation type. Operation of the panels is the same, however an H section is installed at the end of the tracks which the panels can stack into, providing the option of completely uncovering the opening and storing the panels in a stacked position 90 degrees to the opening instead of at the edge of the application. Utilising practical nylon pivots, the panels can slide left or right by running along top and bottom tracks which are fixed permanently to the top and bottom of the application.

Ideal Applications

Balcony/Patio & Enclosure, Room Dividers

Details

  • Maximum Panel Width

    1000 mm

  • Maximum Panel Height

    3000

  • Style Options

    DLi, CL

  • Blade Options

    90, 150

  • Blade Orientations Options

    Horizontal, Vertical

  • Panel Filler Options

    Glass, Aluminium
